B01 – Plate-Type Screen Panel
- Rigid Plate-Type Screening Surface: Provides a stable working surface for industrial vibrating screens, supporting reliable particle separation and material classification under repeated operating loads.
- Uniform Screening Openings: Distributed slot-type apertures allow smaller particles to pass through while retaining oversized material according to the selected opening configuration.
- Secure Mechanical Installation: Integrated mounting points visible on the panel facilitate firm attachment to the screen deck and simplify replacement during routine maintenance.
- Suitable for Industrial Screening: Applicable to mineral processing, aggregates, building materials, and other bulk-material screening systems requiring replaceable modular screen panels.
1. Product Overview

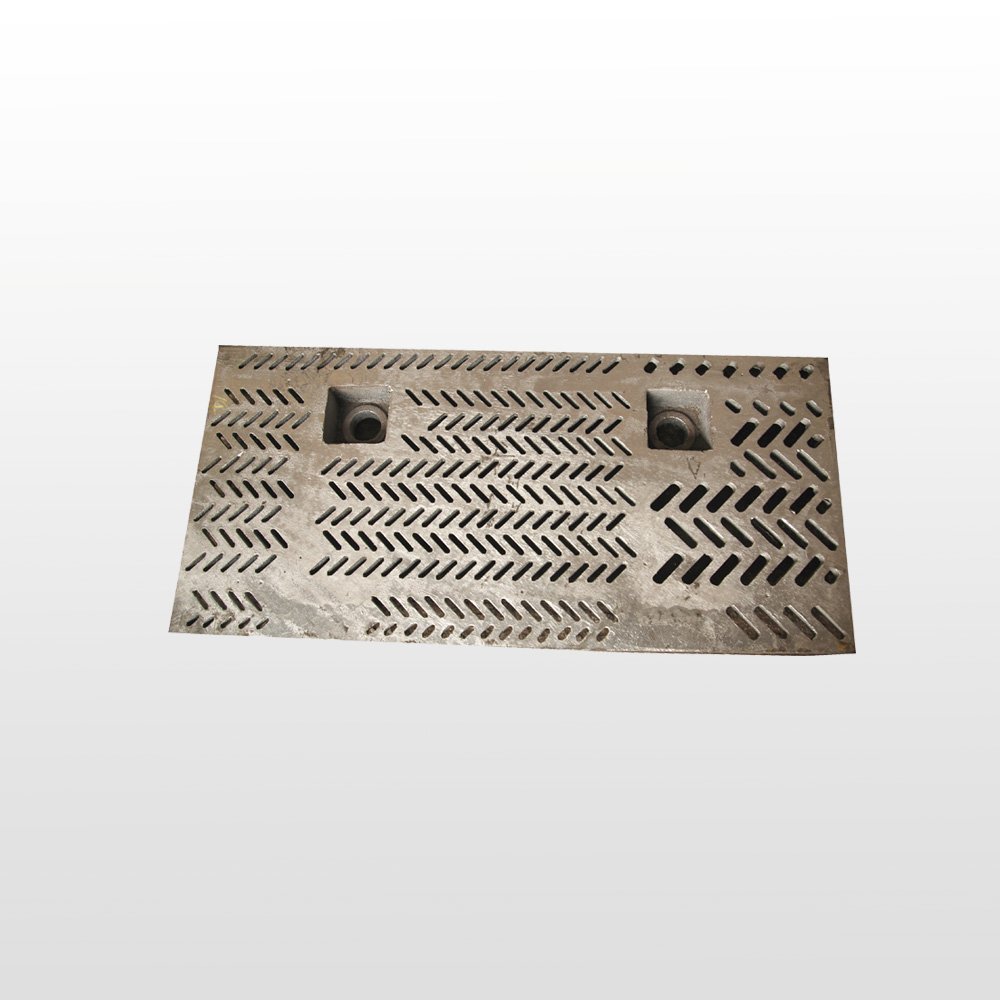

The B01 Plate-Type Screen Panel is a rigid screening component designed for installation on industrial vibrating screens and related classification equipment. It forms the working screening surface through which smaller particles pass while oversized material continues across the screen deck. The panel shown features distributed elongated screening openings together with reinforced mounting points for mechanical installation. Plate-type screen panels are commonly used in mineral processing, aggregate production, building materials, metallurgy, and other bulk-material handling industries. Installed individually or as part of a multi-panel screen deck, the B01 panel provides a replaceable screening surface that supports particle separation, grading, and continuous material processing.
2. Detailed Description
During operation, bulk material is distributed across the plate-type screen surface while vibration generated by the screening machine moves the material along the deck. Particles smaller than the selected apertures pass through the openings, while larger particles remain above the panel and continue toward the discharge end. The arrangement of elongated slots helps provide an open screening area while maintaining the rigidity required for repeated vibration.

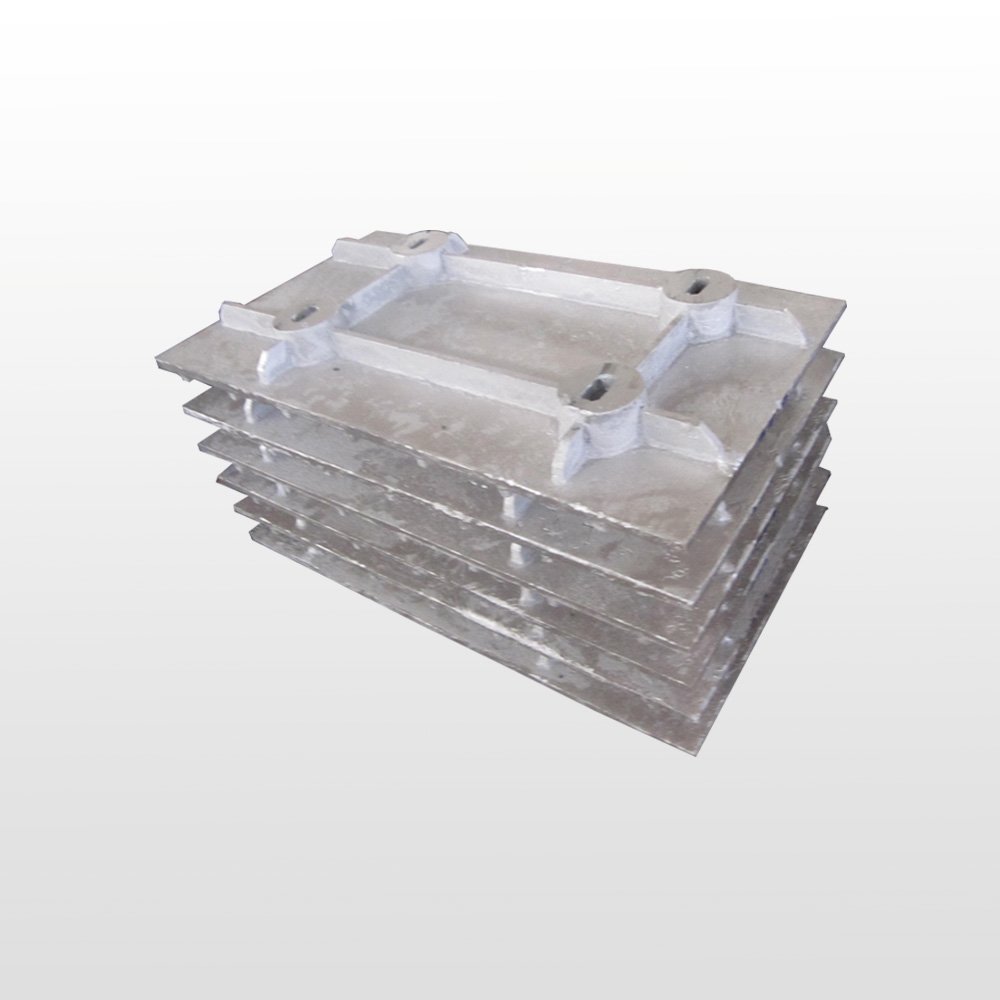

The B01 panel uses a plate-based structure with visible reinforcement and mounting locations for attachment to the supporting screen frame. Individual panels can be arranged according to the dimensions and deck configuration of the screening machine. This replaceable design allows worn sections of the screening surface to be serviced without necessarily replacing the complete screen deck, making it suitable for industrial classification and bulk-material processing systems.
3. Why Choose Us
- Stable screening surface: The rigid plate configuration provides structural support for repeated vibration and continuous bulk-material classification.
- Effective particle separation: Distributed screening apertures allow undersize material to pass while retaining larger particles for continued movement across the deck.
- Replaceable panel design: Individual panels can be removed and replaced when required, helping simplify screen-deck maintenance.
- Secure installation arrangement: Integrated mounting points support reliable mechanical fastening to compatible vibrating screen structures.
- Suitable for modular screen decks: Multiple panels can be arranged across the screening area according to equipment layout and process requirements.
- Compatible with different screening duties: Applicable to grading and separation of aggregates, ores, building materials, and other bulk solids when the appropriate aperture configuration is selected.
- Easy integration with vibrating screens: The plate-type construction can be incorporated into industrial screening machines as the primary material-contact screening surface.
| Parameter | Specification |
|---|---|
| Model | B01 |
| Product Type | Plate-Type Screen Panel |
| Screening Surface | Rigid Plate Type |
| Aperture Type | Slotted / Perforated Openings |
| Panel Length (mm) | — |
| Panel Width (mm) | — |
| Panel Thickness (mm) | — |
| Aperture Size (mm) | — |
| Open Area (%) | — |
| Material | — |
| Mounting Method | Mechanical Fixing |
| Weight (kg) | — |
| Typical Applications | Vibrating screens, grading equipment and bulk-material classification systems |
