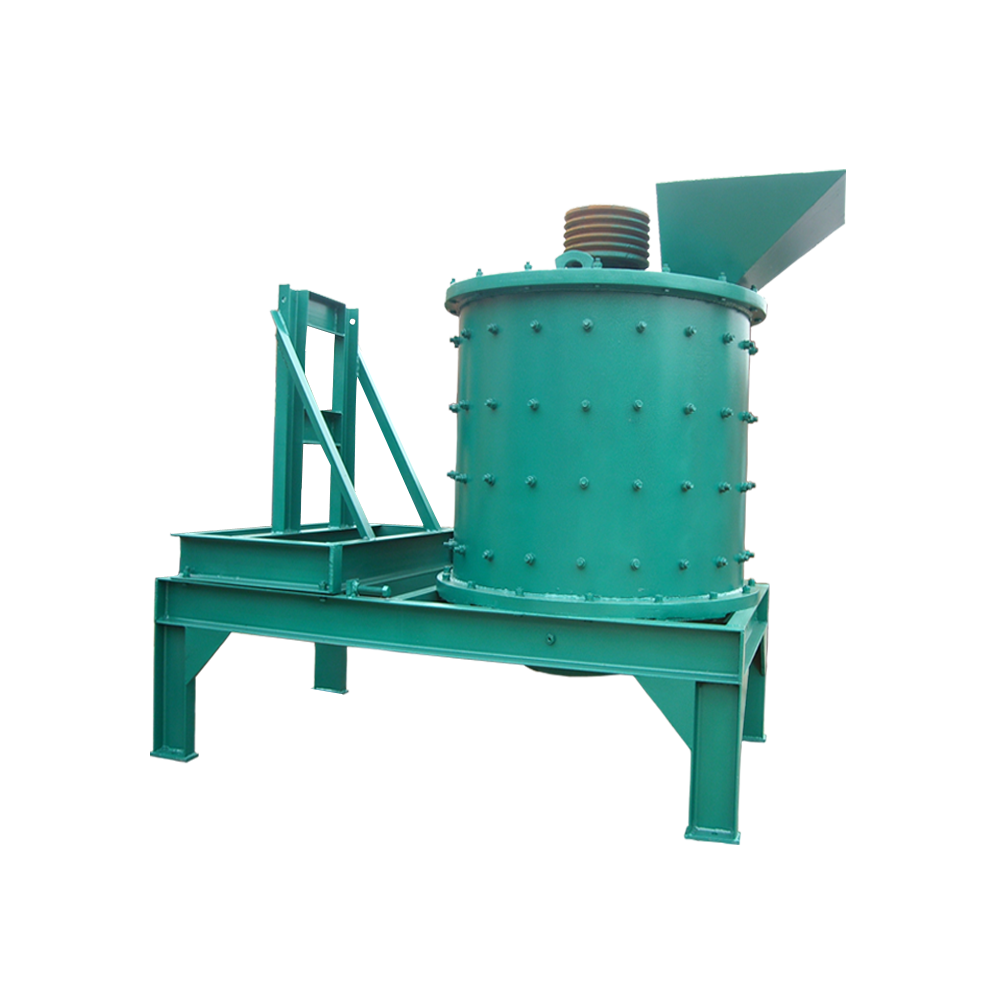

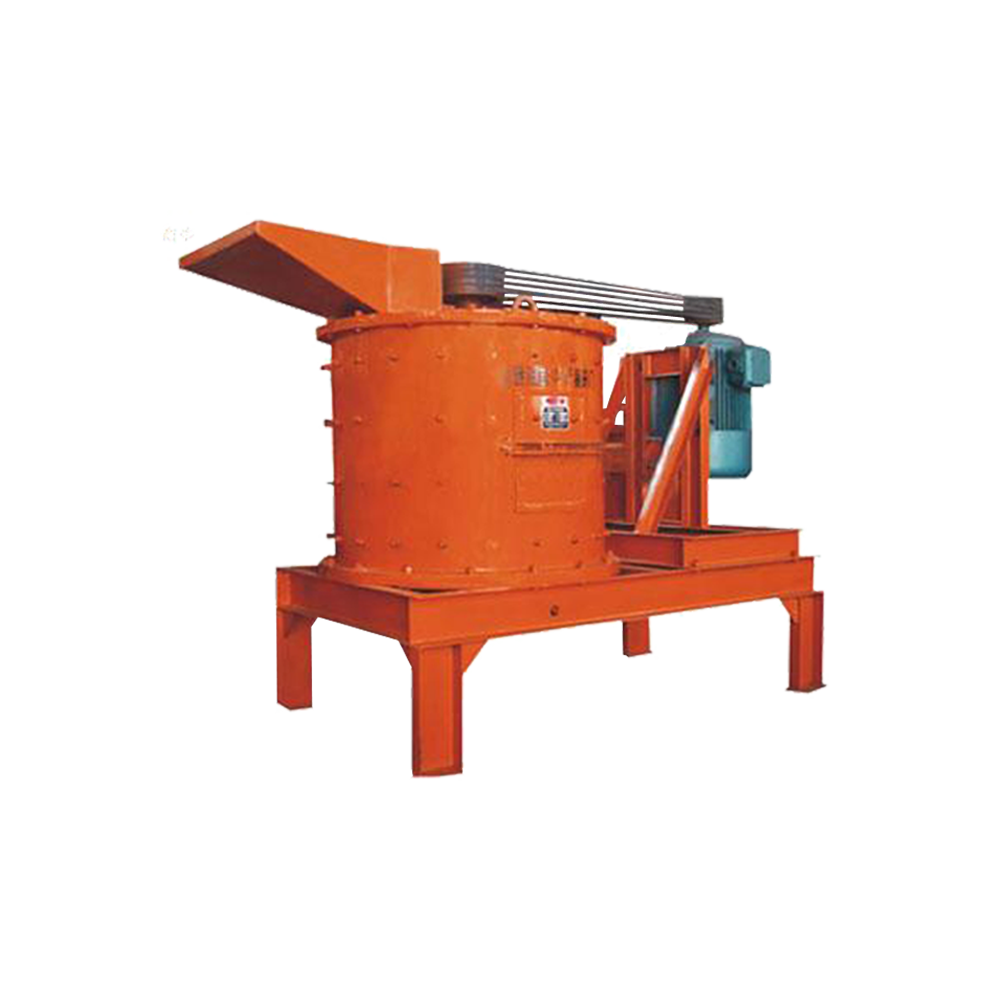

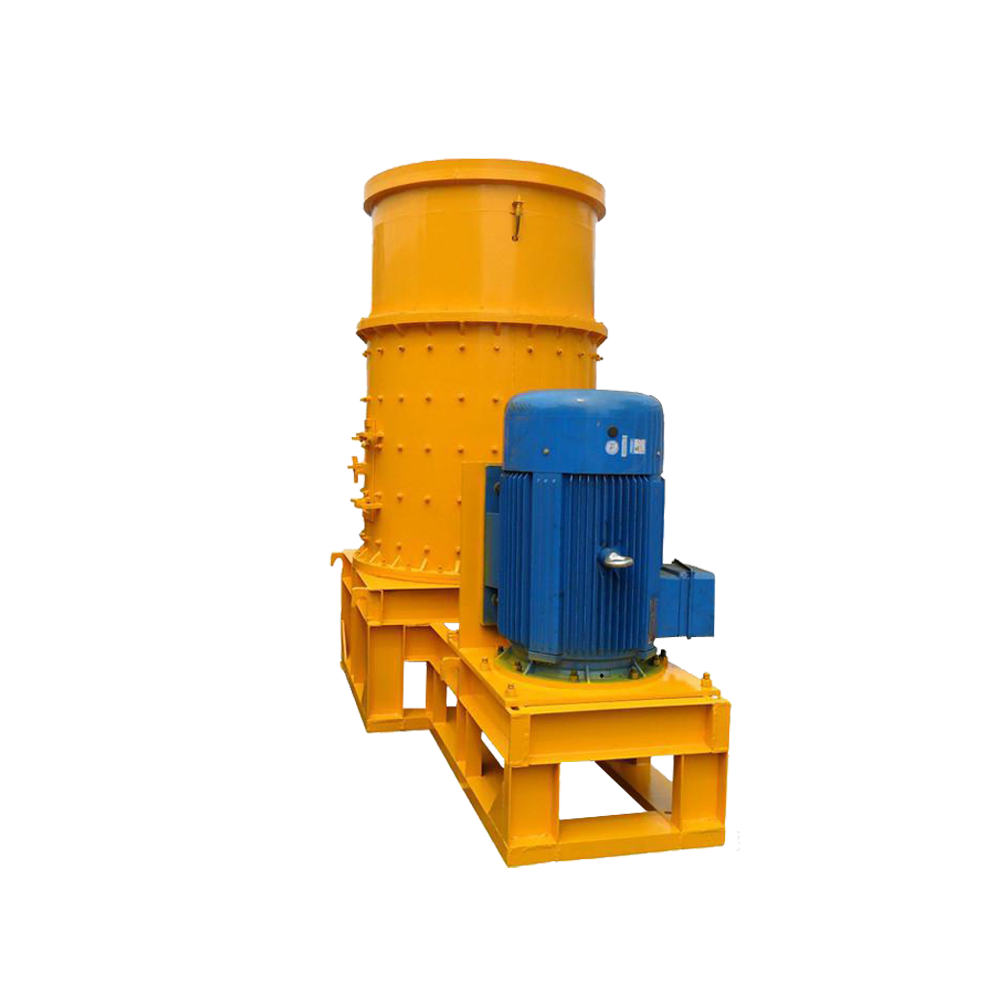

Compound Crusher
-
Multi-function & Large Crushing Ratio: It can complete primary, medium and fine crushing in one process with wide feeding range and adjustable output size to simplify production flow.
-
Non-screen Structure Anti-blocking: No screen bars at the bottom, effectively preventing blockage when processing wet, sticky and muddy stones for continuous operation.
-
Compact Structure & Low Energy Consumption: Vertical layout saves floor space, runs steadily with moderate power consumption and lower comprehensive production cost. components.
-
Easy Maintenance & Wide Versatility:Wear parts are easy to replace. It is versatile for various materials with low investment cost for small and medium processing plants.
1. Product Overview
Vertical Compound Crusher is also called vertical complex crusher. It is a bottomless screen vertical impact crusher integrating hammering, impacting, shearing and grinding crushing principles. It can complete primary, medium and fine crushing in one machine. With large feeding size and big crushing ratio, it has no screen bar and is not easy to block materials, widely used in small and medium aggregate production lines and sand making plants.
2. Detailed Description
The motor drives the main shaft and rotor to rotate at high speed. Materials are strongly impacted by high-speed hammers, then rebound to the liner plates for secondary crushing. Materials collide and grind with each other to reach fine size and discharge from the bottom. Without screen bars at the bottom, it seldom blocks even for sticky and wet materials.
3. Why Choose Us
-
Integrated crushing & screening, multi-purpose machine with large reduction ratio: Combined impact and grinding crushing realizes primary and fine crushing in one step, eliminating multi-stage crushing equipment and simplifying production line layout.
-
Fine and uniform output size, controllable fine powder: No grate blockage design, adjustable finished fineness, perfect for sand making, limestone, shale and other fine material processing.
-
Suitable for dry and slightly wet materials, anti-blocking cavity: TStreamlined cavity prevents adhesion of slightly wet muddy materials, wider adaptability for raw materials.
-
Vertical compact structure, small footprint and easy installation: Vertical integrated body without complicated foundation pouring, compatible with fixed production lines and mobile crushing stations.
-
Combined wear-resistant hammers, low maintenance cost: Split hammer design allows separate replacement of worn parts instead of whole hammers, cutting spare parts cost.
-
Special equipment for small & medium aggregate, building materials and solid waste: Ideal for medium-low hardness materials including limestone, construction waste and coal gangue, with low investment cost.
4. Specifications & Technical Data
| Technical Parameter | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 |
| Max Feeding Size (mm) | < 100 | < 120 | < 150 | < 180 |
| Processing Capacity (t/h) | 10 – 30 | 20 – 50 | 40 – 80 | 70 – 130 |
| Discharge Size (mm) | < 3 (80%) | < 3 (80%) | < 3 (80%) | < 5 (80%) |
| Motor Power (kW) | 37 – 45 | 55 – 75 | 90 – 110 | 132 – 160 |
| Spindle Speed (rpm) | 750 – 960 | 750 – 900 | 600 – 800 | 500 – 750 |
| Material Hardness (MPa) | < 140 | < 140 | < 140 | < 140 |
| Total Weight (kg) | 4,200 | 6,500 | 11,800 | 18,500 |
