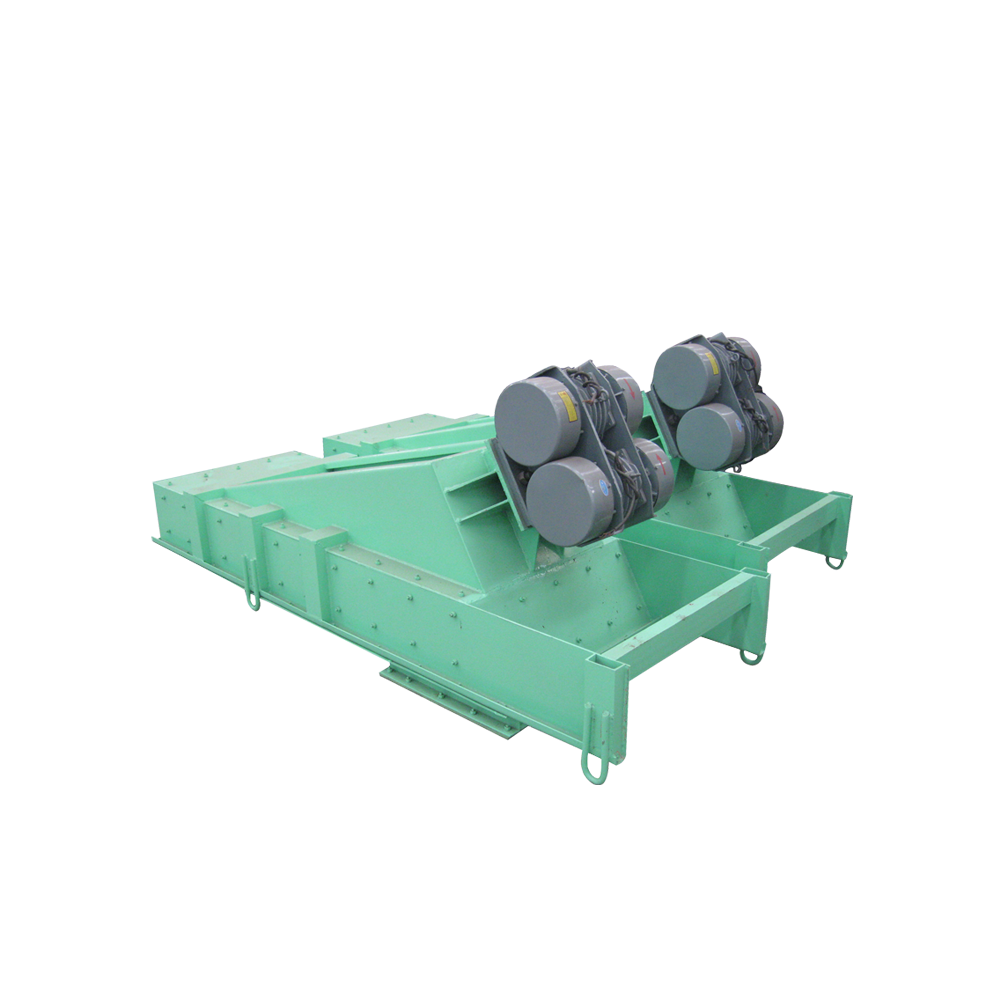

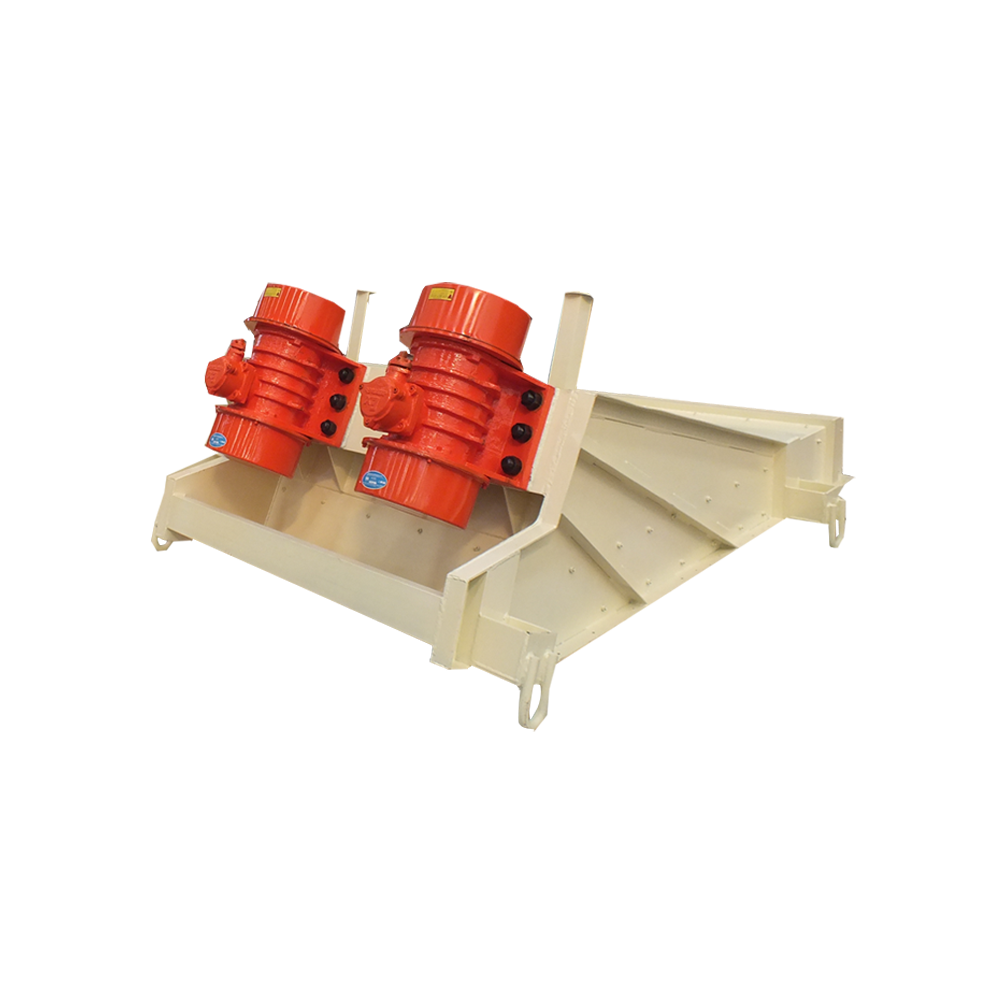

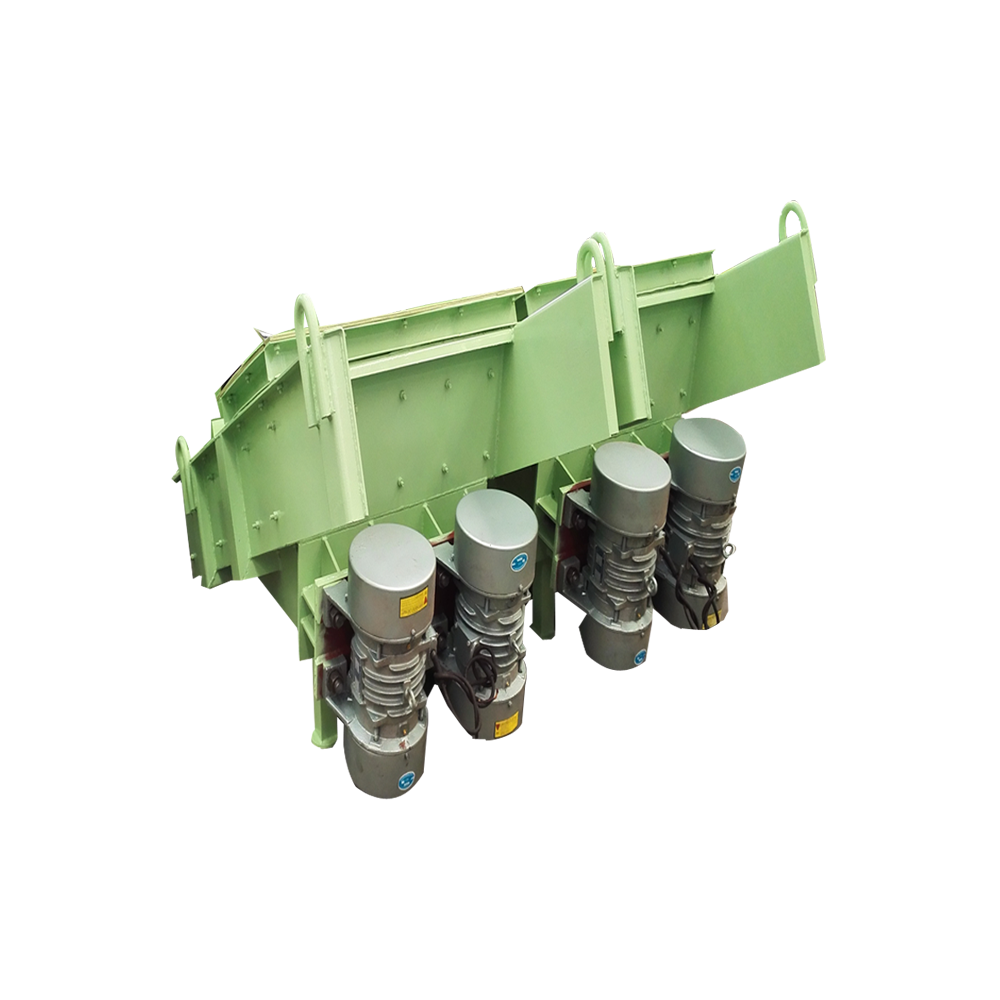

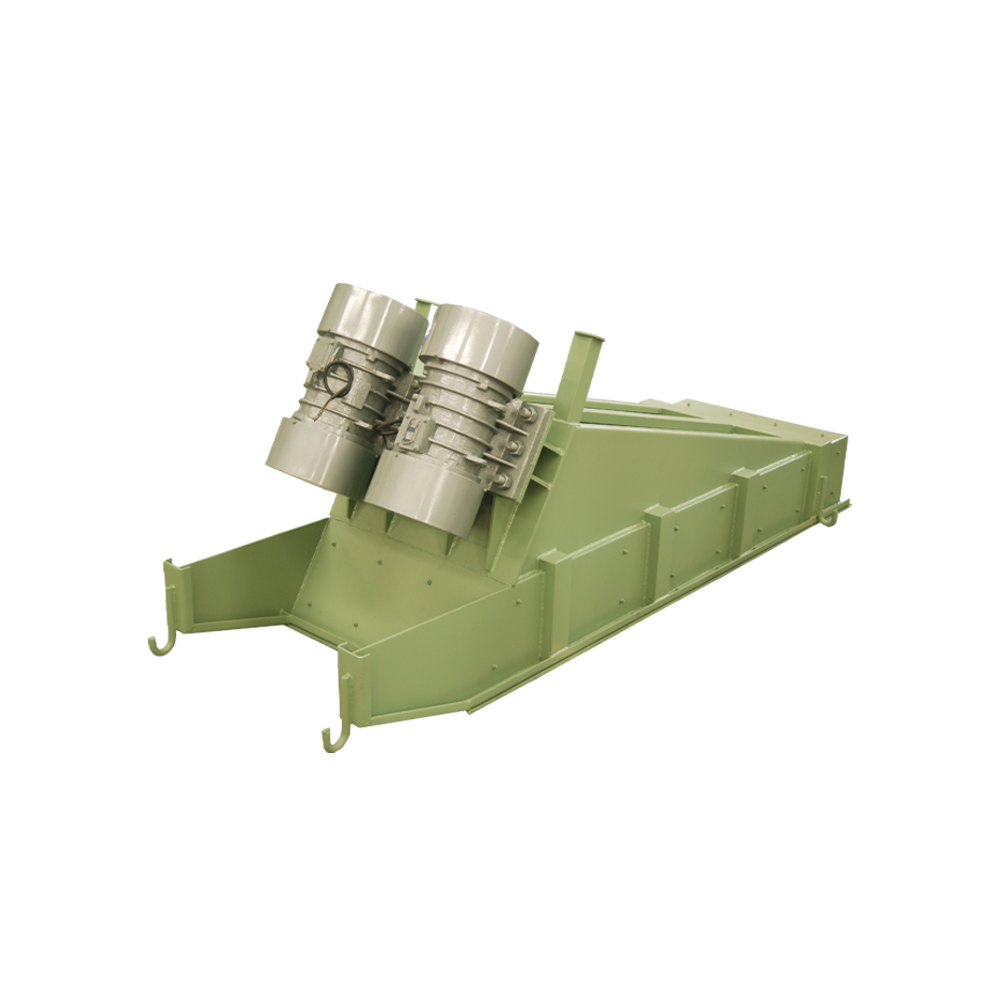

Motor Vibrating Feeder
-
Uniform & Continuous Feeding: Vibration feeding ensures steady discharge without sudden material surges, protecting crushers from overload feeding.
-
Sturdy Structure & Strong Impact Resistance: Constructed with thickened welded steel plates and reinforced wear-resistant trough, it can bear falling impact of lump ores and adapt to harsh mining environments.
-
Anti-bridging & Smooth Discharging: Continuous vibration loosens accumulated materials at silo outlets to avoid bridging and blockage, ensuring uninterrupted production.
-
Easy Adjustment & Automatic Linkage: Wide adjustable feeding range; frequency conversion control can be equipped to realize interlock start-stop and remote control with the whole production line.
1. Product Overview
Vibrating feeder is a trough-type feeding equipment driven by vibration motors. It generates directional exciting force to make the trough vibrate and throw materials forward at high frequency, conveying materials from silos to downstream equipment evenly and continuously. Mainly used for quantitative feeding in front of crushers without screening function, it features stable conveying, adjustable capacity and wide applicability, widely adopted as front feeding equipment in mining, aggregate and building material production lines.
2. Detailed Description
Two vibration motors rotate synchronously and reversely to produce directional exciting force, driving the inclined trough to throw materials forward periodically. Materials slide ahead intermittently under vibration for continuous feeding. The feeding speed and capacity can be adjusted by changing the angle of eccentric blocks on vibration motors.
3. Why Choose Us
-
Specialized in uniform quantitative feeding, continuous stable supply without surging: The tank without screen bars delivers steady material conveying via vibration, balanced discharge flow to match crusher feeding load precisely.
-
Strong exciting force eliminates silo bridging & blockage for smooth discharging: High-frequency vibration disturbs materials thoroughly to avoid caking and arching of wet sticky ore, reducing feeding breakdowns.
-
Thickened heavy-duty tank, capable of bearing silo material pressure directly: Reinforced frame and wear-resistant steel tank can be installed under silos, conveying heavy raw lumps, coal and aggregates.
-
Dual vibration motor synchronous drive, stepless feeding adjustment by frequency converter: Balanced vibration from twin motors; frequency converter realizes flexible speed regulation for automated crushing line linkage.
-
No complex transmission parts, low failure rate & easy maintenance: Powered only by vibrators without fragile gears or chains; quick disassembly of tank liners shortens maintenance downtime.
-
Dedicated quantitative feeding machine under silos for all industries: Pure feeding function without screening, widely installed under silos of coal mines, metal mines and aggregate yards to feed jaw and cone crushers.
4. Specifications & Technical Data
| Model | Feed Size (mm) | Capacity (t/h) | Vibration Motor Model | Power (kW) | Exciting Force (KN) |
| ZGF-35-90 | 0-60 | 25 | YZO-2.5-4 | 0.25×2 | 2.5×2 |
| ZGF-45-90 | 0-60 | 30 | YZO-5-4 | 0.4×2 | 5×2 |
| ZGF-45-90 | 0-100 | 50 | YZO-5-4 | 0.4×2 | 5×2 |
| ZGF-70-100 | 0-150 | 100 | YZO-8-4 | 0.75×2 | 8×2 |
| ZGF-80-120 | 0-150 | 200 | YZO-17-4 | 0.75×2 | 17×2 |
| ZGF-90-150 | 0-150 | 300 | YZO-20-4 | 2.0×2 | 20×2 |
| ZGF-95-150 | 0-150 | 400 | YZO-20-4 | 2.0×2 | 20×2 |
| ZGF-140-180 | 0-150 | 750 | YZO-30-4 | 2.5×2 | 30×2 |
