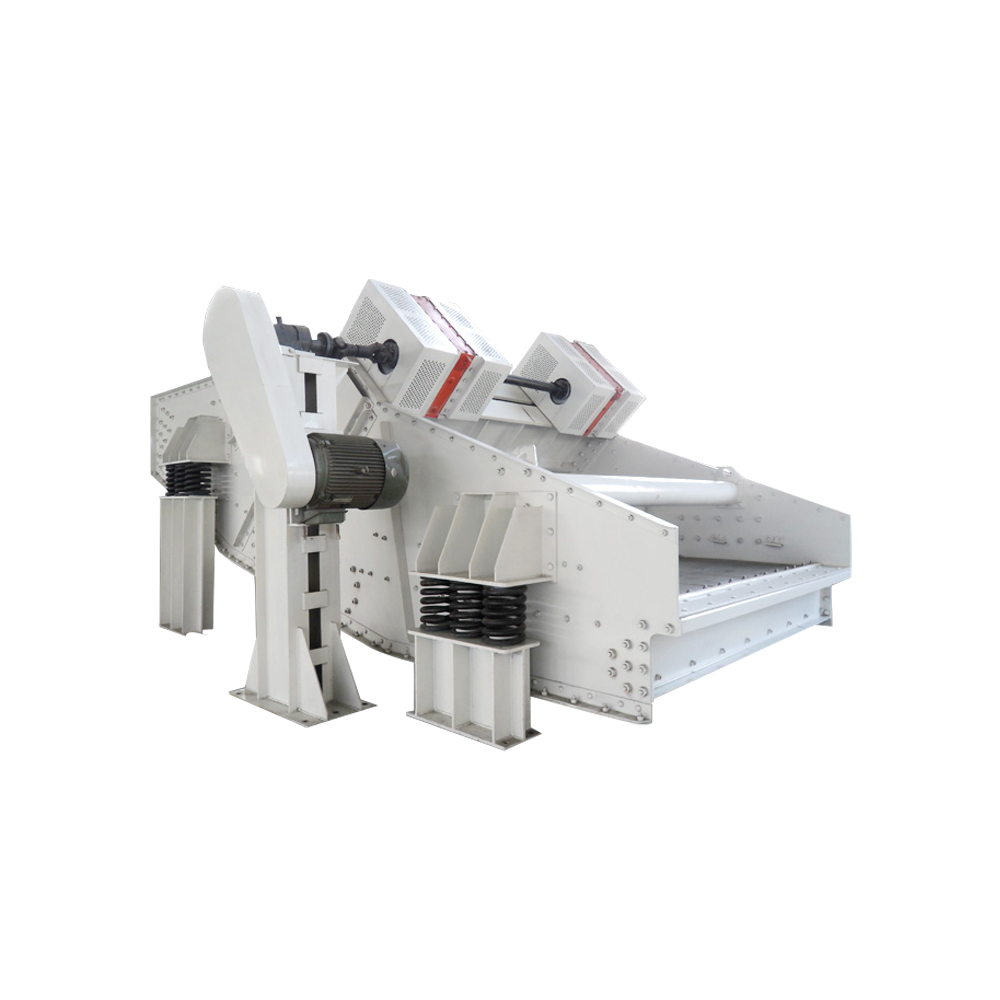

Banana Screen
- Equal-thickness Screening & Higher Throughput: The unique multi-angle equal-thickness design achieves 100% deck utilization. Its throughput is 1.5–2 times higher than ordinary circular vibrating screens under the same floor area, perfectly matching 200–800t/h high-yield production lines.
- Superior Anti-blocking for Wet & Sticky Coal: Steep feeding angle enables fast material spreading. Equipped with polyurethane long-slit screen plates, it resists blocking and blinding caused by high-moisture open-pit coal, ensuring stable wet material screening performance.
- Heavy-duty Box Structure & Strong Impact Resistance: Integrated full-welded box beam and bolted modular assembly provide high rigidity, strong impact resistance and anti-fatigue performance, suitable for 24-hour continuous heavy-duty mining operation.
- Multi-functional Integration to Simplify Process: It integrates raw coal grading, desliming, clean coal de-mediuming and material dewatering in one unit, reducing equipment quantity and project investment.
1. Product Overview
The banana screen is a multi-angle self-synchronizing linear vibrating screen adopting equal-thickness screening principle. With banana-shaped variable-inclination deck and heavy-duty box welded steel structure driven by eccentric shaft exciter, it supports 1–2 screen layers. Featuring full-range equal-thickness screening, it delivers much higher throughput than conventional screens and adapts well to high-moisture sticky coal. Widely used for raw coal grading, desliming, de-mediuming and dewatering, it serves as core high-capacity screening equipment for large-scale coal washing plants.
2. Detailed Description
The eccentric shaft exciter generates high-frequency linear vibration. The multi-section decreasing-angle deck realizes uniform material spreading. The steep feeding angle accelerates stratification and anti-blocking, while the gentle discharging angle extends screening time. Uniform material thickness eliminates stacking and dead zones for continuous fine particle penetration and stable coarse material discharge. Adjustable excitation force adapts to high-flow and high-humidity complex feeding for efficient continuous screening.
3. Why Choose Us
- Multi-slope equal-thickness screening, high-precision grading for wet materials：Adopts multi-section decreasing banana slope design to realize full-deck equal-thickness material conveying. Steep feed slope accelerates stratification while gentle discharge slope extends screening time. It achieves over 96% stable efficiency for wet sticky coal, damp aggregates and humid solid waste, outperforming conventional circular vibrating screens.
- Super large throughput, 1.5–2 times capacity in same floor space：Zero screening dead zones and 100% deck utilization deliver extremely high unit throughput. It adapts to 200–800t/h high-output coal and aggregate lines. One single unit replaces multiple ordinary screens, saving floor space, transfer belts and foundation investment for large-scale production.
- Heavy box-beam riveted structure, 24h heavy-load anti-deformation：Integrated box beam and one-piece bent side plates with high-strength riveted assembly provide ultra-high rigidity. It withstands continuous heavy lump impact without cracking or deformation, fully suitable for 24-hour heavy-duty operation in mines and coal washing plants.
- Anti-blocking long-slit PU screen plates, no blinding for wet sticky materials：Equipped with wear-resistant long-slit PU panels (non-circular aperture). It achieves self-cleaning effect for wet coal, fine slime and muddy aggregates, completely solving screen blinding for high-moisture open-pit coal and humid solid waste, ensuring continuous production in humid conditions.
- Self-synchronizing linear vibration, stable low-noise & low-energy operation：Dual-shaft self-synchronizing exciters provide stable linear vibration with constant throwing intensity. Less invalid vibration reduces power consumption and noise. Extremely low failure rate during long-term operation, ideal for unattended coal washing lines.
- Multi-functional integration: grading / dewatering / desliming / de-mediuming：One machine integrates raw coal pre-grading, clean coal dewatering & de-mediuming and aggregate wet screening. Compatible with both dry and wet working conditions. It replaces multiple process screens and greatly simplifies the whole crushing and washing flow.
| Item | Parameter |
| Product Name | Banana Equal-Thickness Vibrating Screen |
| Vibration Type | Self-synchronizing linear vibration |
| Deck Structure | Multi-slope banana-shaped equal-thickness deck |
| Number of Screen Decks | 1 / 2 layers optional |
| Exciter Unit | Dual-shaft eccentric self-synchronizing exciter |
| Amplitude | Adjustable 4-8 mm |
| Vibration Frequency | 14-16 Hz |
| Deck Angle | Variable gradient 18°-12°-8° (customizable) |
| Screen Panel Option | Polyurethane long-slit panel / punched steel plate / woven mesh |
| Frame Construction | Full-welded heavy-duty box-beam frame, riveted assembly |
| Damping System | Rubber isolation springs |
| Feeding Capacity | 200-800 t/h (depends on material & aperture size) |
| Applicable Moisture | ≤22% for sticky wet raw coal & aggregates |
| Working Mode | Continuous 24-hour heavy-duty operation |
| Application | Raw coal grading, desliming, de-mediuming, dewatering, wet aggregate screening, solid waste separation |
| Notes | |
| 1. Capacity is reference value; actual throughput shall be subject to raw material property, feed particle size and screen aperture. | |
| 2. Screen deck size, aperture, overall dimension can be customized per client’s process requirements. | |
| 3. Motor power is configured according to screen model and processing capacity. | |
