Light-Duty Linear Screen
-
Lightweight Body & Low Energy Consumption: Light welded structure weighs much less than heavy mining linear screens. Matched with low-power standard YZO vibrating motors to reduce power consumption and operating costs.
-
Linear Conveying with Large Throughput for Assembly Line: Materials move forward smoothly without accumulation, supporting 24-hour continuous operation. It can be directly connected with mixers, packaging machines and silos for automatic production.
-
Fully Sealed Dustproof Structure, Eco-friendly: Optional dust-proof cover prevents dust overflow during powder screening. Stainless steel version meets sanitary standards for food and pharmaceutical clean production.
-
Optional Multi-layer Screens for Multi-grade Separation:1-5 layers of screens are optional, one machine can separate 2-6 material grades to save investment of multiple screening machines.
1. Product Overview

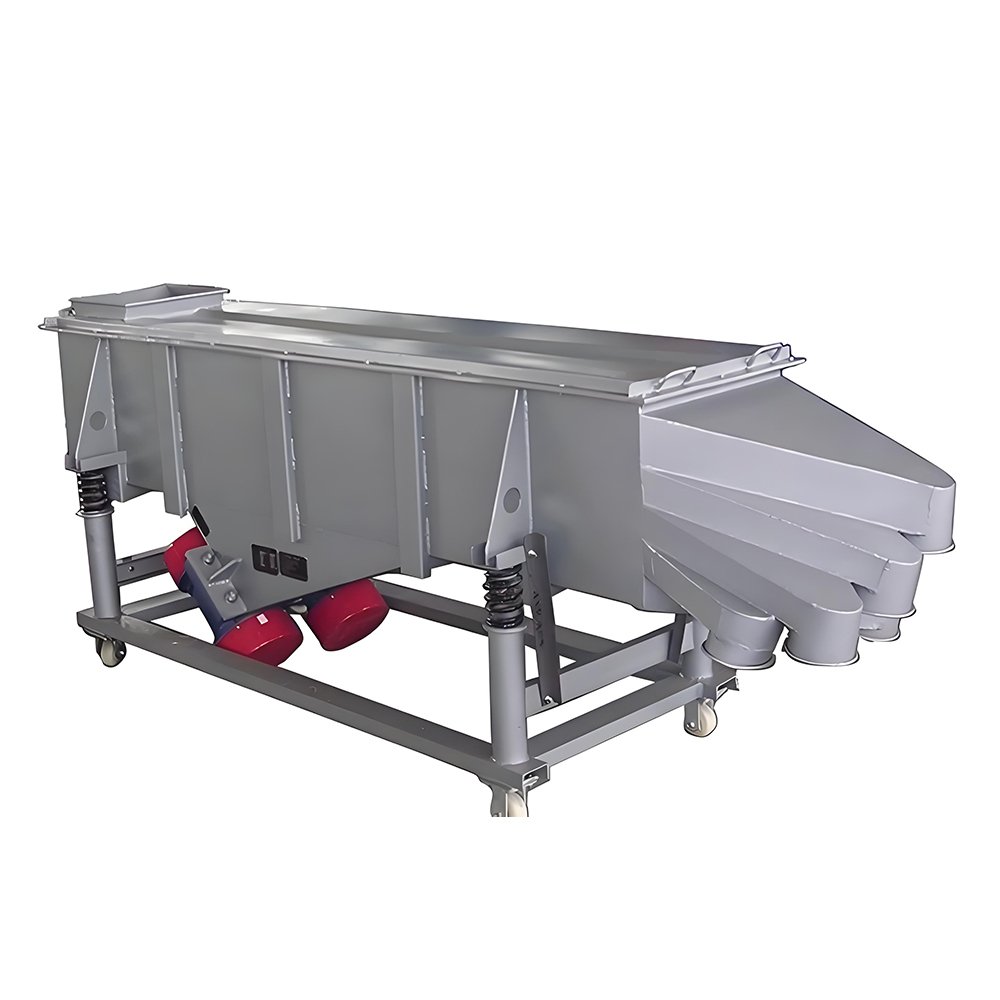

Light linear vibrating screen is a lightweight horizontal screening machine driven by two YZO series vibrating motors. The screen box generates linear throwing vibration. Featuring light weight and low power consumption, it can be equipped with 1-5 layers of screens to separate multi-specification materials in one pass. Available in carbon steel and 304/316 stainless steel, it is suitable for continuous screening of dry powder and small granular materials on production lines of food, chemical, plastic and building materials industries.
2. Detailed Description

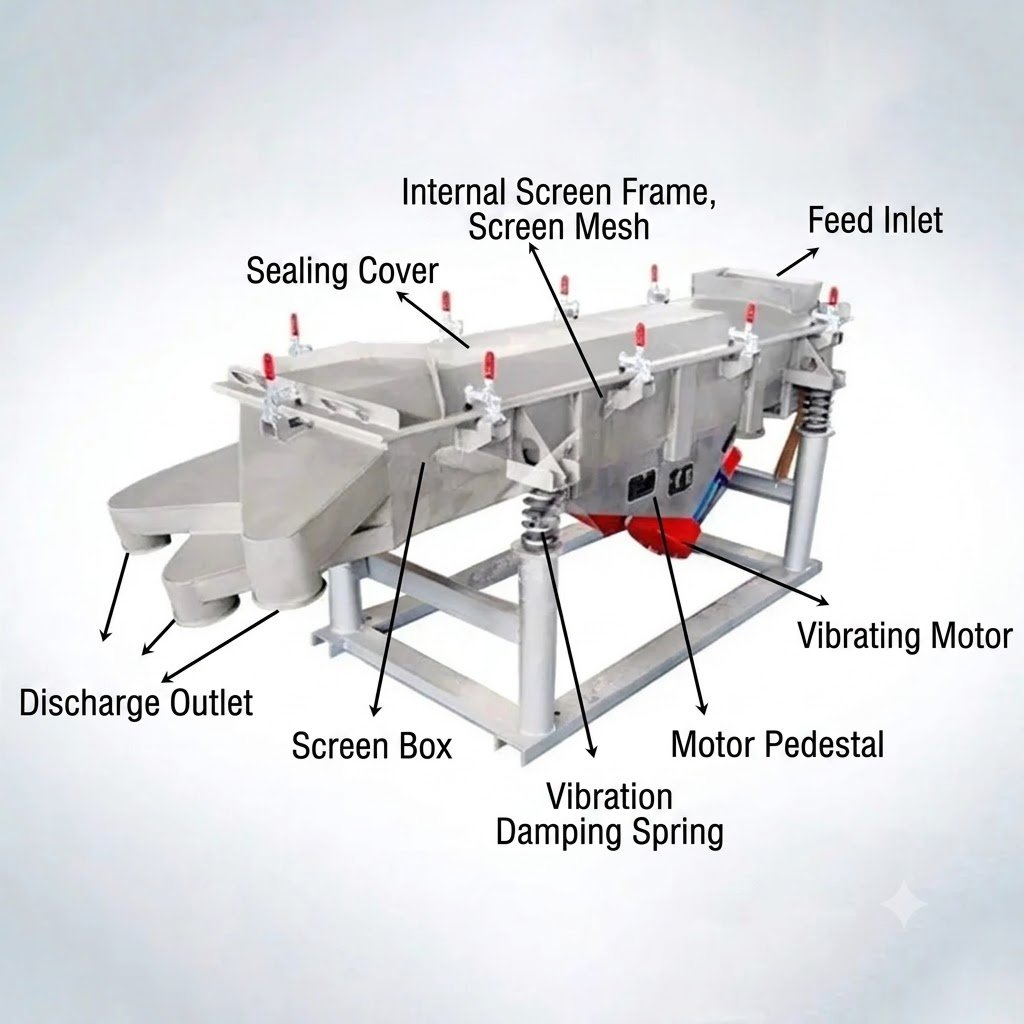

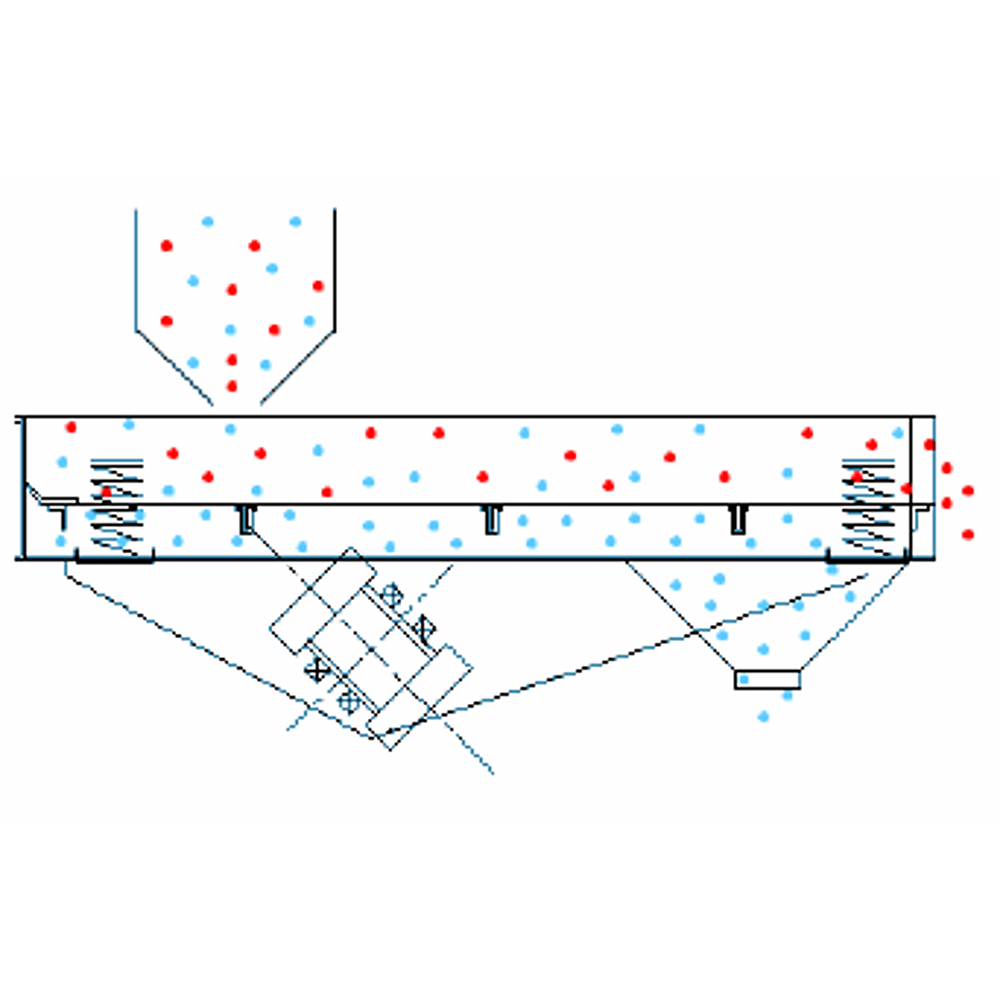

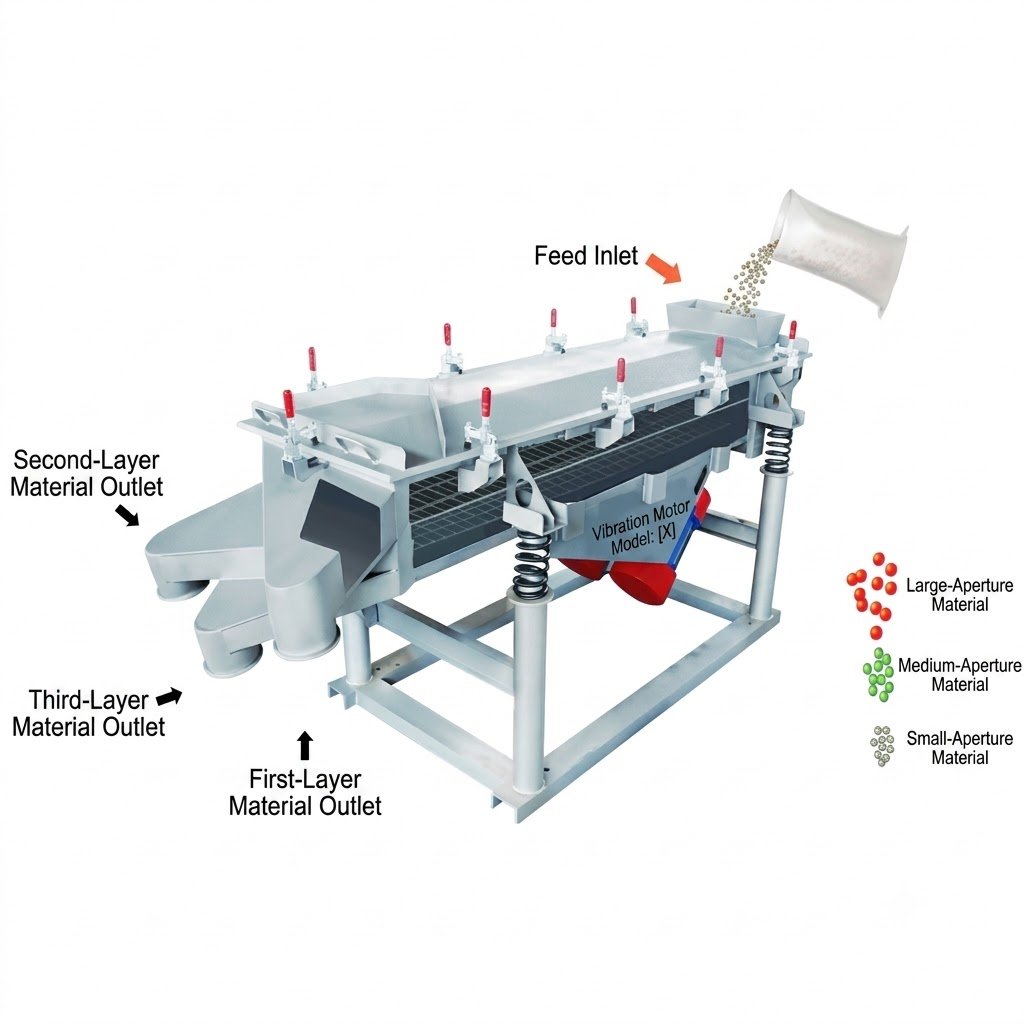

Two symmetric YZO vibrating motors rotate synchronously in reverse directions. The centrifugal force generated by eccentric blocks overlaps to form directional linear excitation force, driving the screen box to throw materials forward at a fixed inclination angle. Materials spread evenly from the feeding end. Fine materials pass through screens and discharge from lower outlets, while coarse materials flow out from screen ends. Multi-layer models have independent outlets for each deck to separate multiple particle sizes at once. The excitation force is adjustable to meet different capacity requirements.
3. Materials
Plastic pellets, resin powder, grain, flour, starch, pharmaceutical granules, chemical powder, fine quartz sand, calcium carbonate, ceramic raw materials, feed pellets, dry fine aggregate and other dry non-sticky granular & powdery materials.
4. Why Choose Us
-
Linear reciprocating vibration, screening & conveying integrated: Dual motors generate directional linear vibration, materials move forward evenly while being screened, smooth flow without material buildup, perfect for inline continuous production.
-
Lightweight slim frame, small footprint & easy lifting/installation: Light steel/aluminum alloy construction with low profile, light weight enables mounting over conveyors/silos, suitable for narrow workshops and upper floors, convenient for production line retrofits.
-
Wide adaptability for fine screening, high efficiency for light industrial powder & granules: Equipped with PU/stainless steel screens, delivers stable classification for grain, feed, plastic pellets, chemical powder and tea, covering 20~200 mesh impurity removal and fine grading.
-
Smooth low-noise operation with vibration isolation, minimal disturbance: Rubber isolation springs cut vibration and noise below 70dB, low dynamic load removes need for heavy foundations; multi-unit layout feasible without disrupting adjacent precision machinery.
-
Quick-release screens & washable structure, fast maintenance & sanitary compliance: Slide-in snap screens enable fast replacement and washdown with zero dead zones; 304 stainless steel contact parts optional, meeting sanitation standards for frequent formula changes in food processing.
-
Low power consumption, economical long-term operation: Low-power YZO vibrators reduce energy cost per ton; simple structure with few wearing parts only requires regular greasing and tightening, cutting downtime and delivering strong value for large-scale light industry lines.
5. Specifications & Technical Data
| Parameter Item | Unit | Description |
| Model No. | – | Light series linear screen model |
| Screen Size (W×L) | mm | Width × Length of single deck |
| Number of Decks | layer | 1~3 layers optional |
| Effective Screening Area | ㎡ | Usable screen surface area |
| Screen Mesh Material | – | SUS304 stainless steel / nylon mesh |
| Mesh Aperture Range | mm | 0.05~10 mm |
| Vibration Frequency | r/min / Hz | Motor rotation speed |
| Vibration Amplitude | mm | Adjustable stroke |
| Vibration Angle | ° | Linear vibration direction angle |
| Single Motor Power | kW | Power of each vibration motor |
| Total Motor Power | kW | Sum of double motors |
| Dry Material Capacity | t/h | Dry powder & granule throughput |
| Wet Material Capacity | m³/h | Slurry screening flow rate |
| Power Supply | V/Hz | 380V 50Hz |
| Overall Dimension (L×W×H) | mm | Complete machine outer size |
| Net Weight | kg | Weight without support frame |
| Contact Material | – | Carbon steel / SUS304 stainless steel |
| Damping Parts | – | Rubber damping spring |
| Structure Feature | – | Lightweight, fully sealed dustproof |
| Model | LZS-510 | LZS-520 | LZS-1020 | LZS-1030 | LZS-1230 |
| Screen Size (W×L) | 500×1000 mm | 500×2000 mm | 1000×2000 mm | 1000×3000 mm | 1200×3000 mm |
| Optional Decks | 1~2 layers | 1~2 layers | 1~3 layers | 1~3 layers | 1~3 layers |
| Effective Screening Area | 0.4 ㎡ | 0.9 ㎡ | 1.8 ㎡ | 2.7 ㎡ | 3.2 ㎡ |
| Standard Mesh Range | 0.05~6 mm | 0.05~6 mm | 0.05~8 mm | 0.05~8 mm | 0.05~10 mm |
| Vibration Speed | 1450 r/min | 1450 r/min | 1450 r/min | 1450 r/min | 1450 r/min |
| Amplitude | 1.0~1.8 mm | 1.0~1.8 mm | 1.2~2.0 mm | 1.2~2.0 mm | 1.2~2.0 mm |
| Vibration Angle | 45° | 45° | 45° | 45° | 45° |
| Single Motor Power | 0.25 kW | 0.37 kW | 0.55 kW | 0.75 kW | 0.75 kW |
| Total Motor Power | 0.5 kW | 0.74 kW | 1.1 kW | 1.5 kW | 1.5 kW |
| Dry Handling Capacity | 0.5~3 t/h | 1~5 t/h | 3~10 t/h | 5~15 t/h | 8~20 t/h |
| Overall Dimension (1 layer) | 1200×680×750 mm | 2200×680×800 mm | 2250×1180×900 mm | 3250×1180×950 mm | 3280×1380×1000 mm |
| Net Weight (1 layer) | 120 kg | 180 kg | 320 kg | 430 kg | 520 kg |
