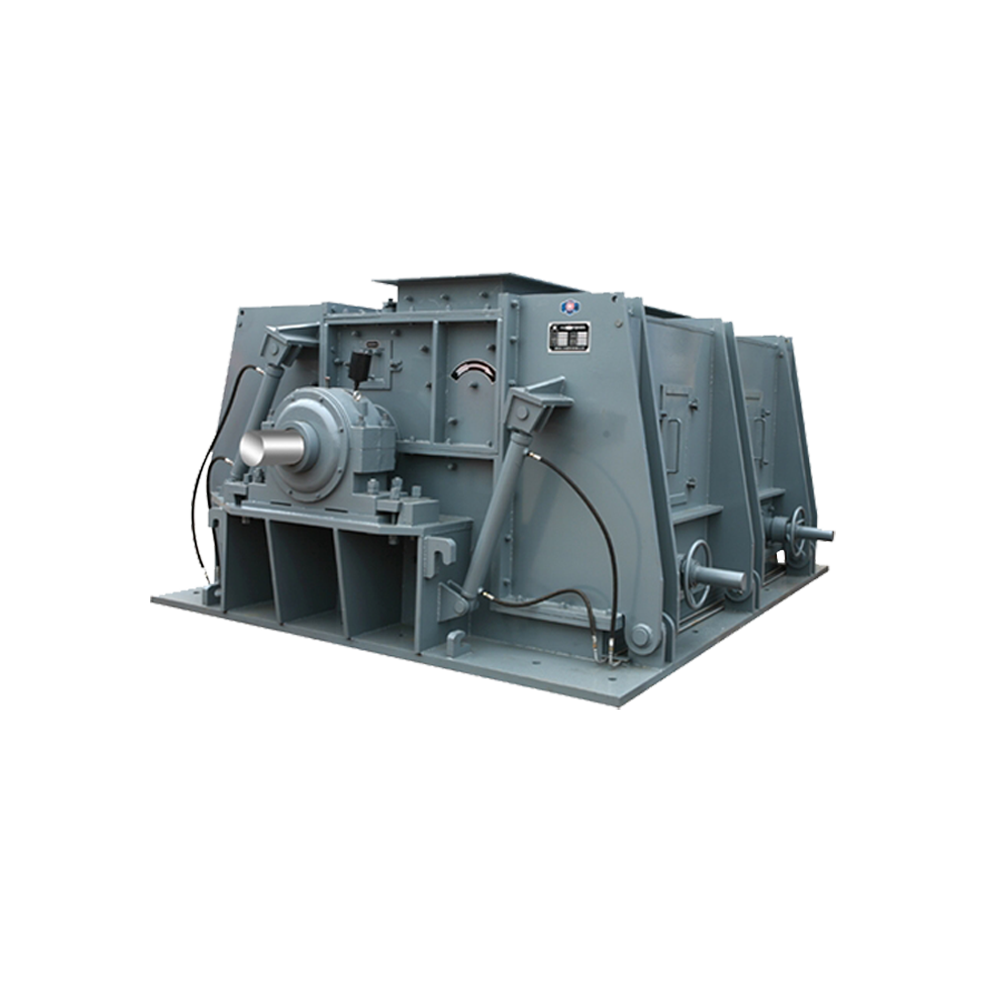

Ring Hammer Crusher
-
Large Crushing Ratio & High Efficiency: It realizes one-step shaping with large crushing ratio, featuring high throughput and continuous production.
-
Rotatable Ring Hammers & Long Service Life: Rotatable ring hammers wear evenly for longer service life. High manganese steel parts are wear-resistant and easy to replace.
-
Dry & Wet Dual Purpose: Suitable for materials with certain moisture content, less prone to blockage, with low vibration, dust and power consumption.
-
Adjustable Output & Easy Maintenance:Output size can be adjusted by changing screen gaps. Compact structure brings convenient inspection and maintenance.
1. Product Overview
The PCH series ring hammer crusher is a rotary impact crushing machine, also known as coal crusher. It crushes materials via hammer impact, collision, shearing and grinding. Designed for medium-hard brittle material secondary crushing, it features large crushing ratio, stable capacity and suitability for both dry and wet feeding, widely used in thermal power plants, coal mines, building materials and solid waste recycling industries.
2. Detailed Description
Driven by the motor, the rotor runs at high speed, and ring hammers rotate both around the main shaft and pin shafts. Materials are first shattered by hammer impact, then rebounded onto the impact liner for secondary crushing. After further shearing and grinding on the screen plate, qualified particles pass through gaps for discharge, while oversized stones are re-crushed repeatedly. Foreign matters will be discharged into the iron removal chamber to protect the machine.
3. Why Choose Us
-
High crushing efficiency & large reduction ratio: Adopts high-speed impact crushing by ring hammers, completes primary and medium crushing in one pass, simplifies crushing process with large particle size reduction range.
-
Wide material adaptability for soft & medium-hard materials: Capable of processing coal, limestone, shale, coal gangue, construction waste and other medium & low hardness materials with strong versatility.
-
Uniform finished size with moderate over-crushing: Ring hammers and liners realize impact grinding for regular finished grains; adjustable grate bars control discharge size to meet standards of brick-making and power plant fuel.
- Compact structure, small floor space: Integrated machine design without complicated supporting equipment, easy installation, ideal for factory workshops and mobile production lines.
-
Openable housing, easy maintenance & parts replacement: Quickly openable machine shell for easy disassembly of ring hammers, liners and grate bars, effectively cutting maintenance downtime.
- Built-in screening function at bottom:Bottom grate bars realize simultaneous screening; qualified materials discharge directly while large lumps get re-crushed inside, reducing repeated circulation.
4. Specifications & Technical Data
| Technical Parameter | Specification Detail |
| Rotor Diameter | 600 – 1,600 mm |
| Rotor Width | 400 – 2,000 mm |
| Max Feeding Size | ≤ 200 – 400 mm |
| Discharge Size | ≤ 30 mm (Adjustable) |
| Processing Capacity | 30 – 800 t/h |
| Motor Power | 22 – 630 kW |
| Rotor Speed | 700 – 980 rpm |
| Material Hardness | ≤ 150 MPa |
| Equipment Weight | 2.5 – 55 Tons |
