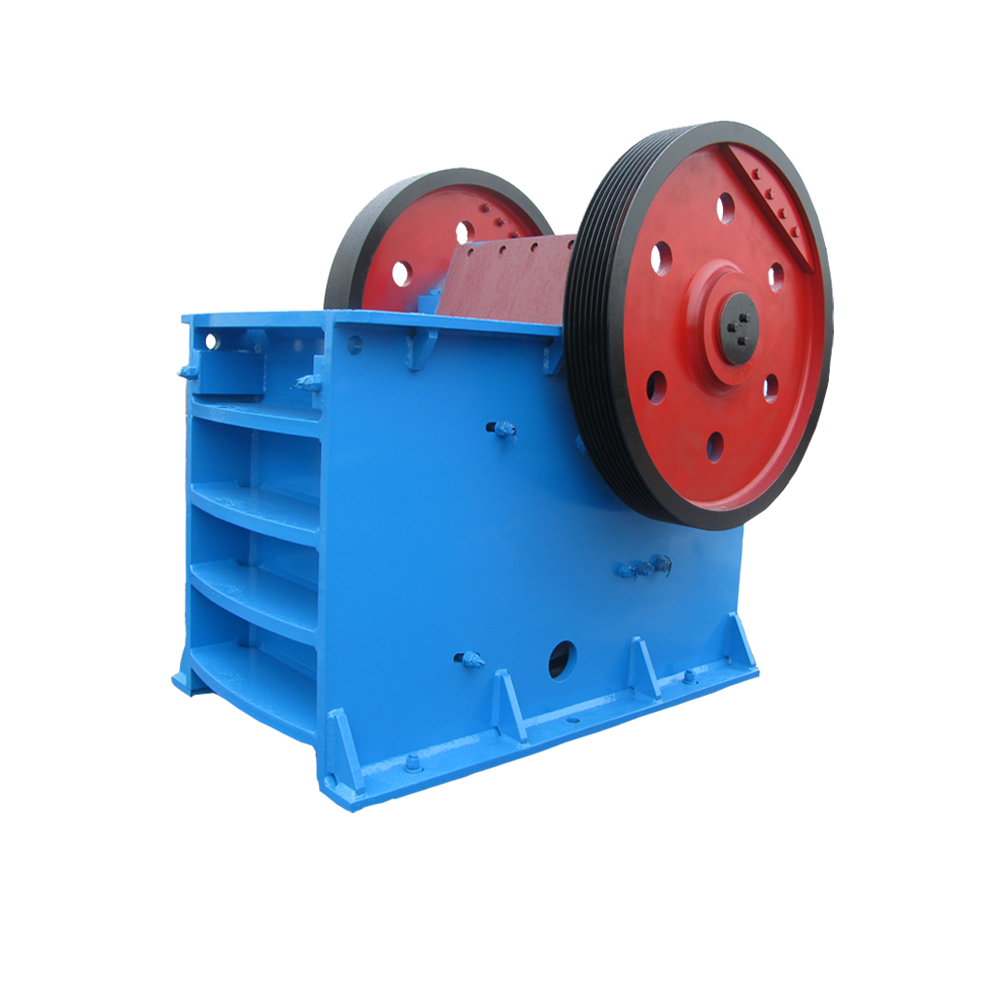

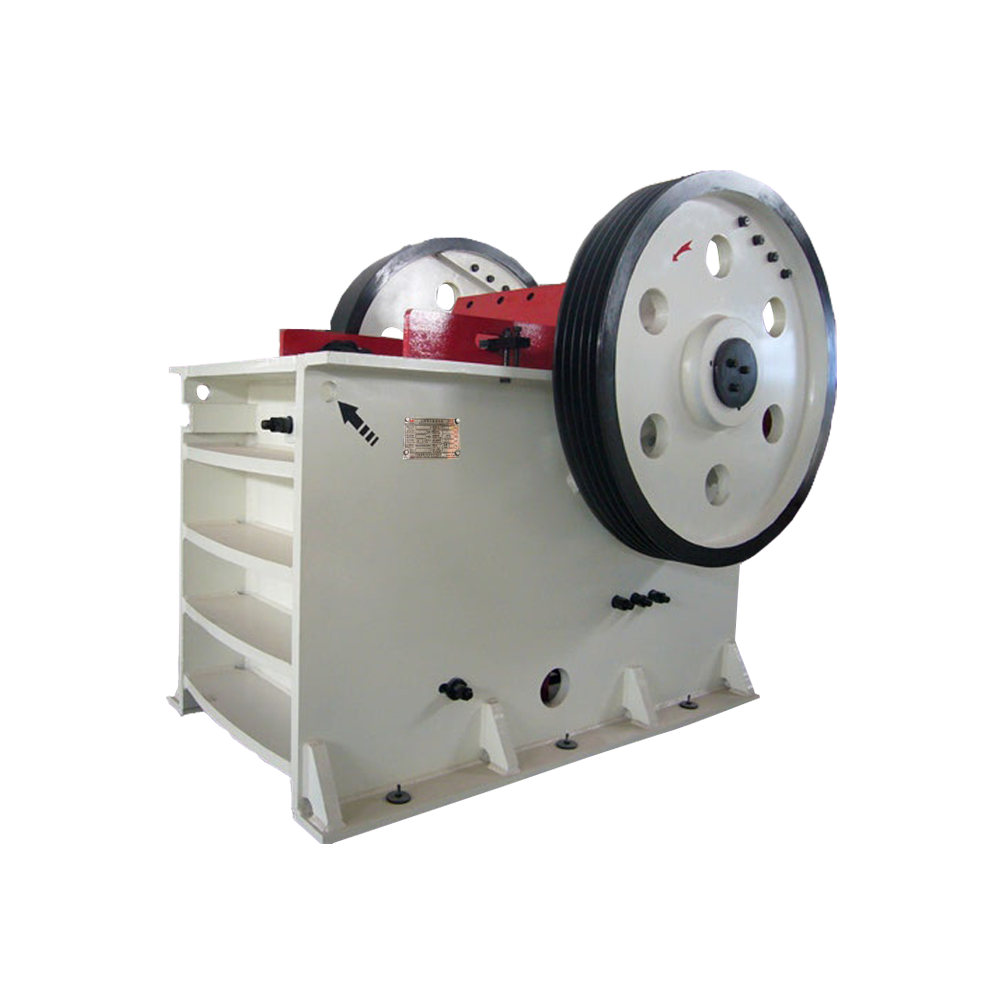

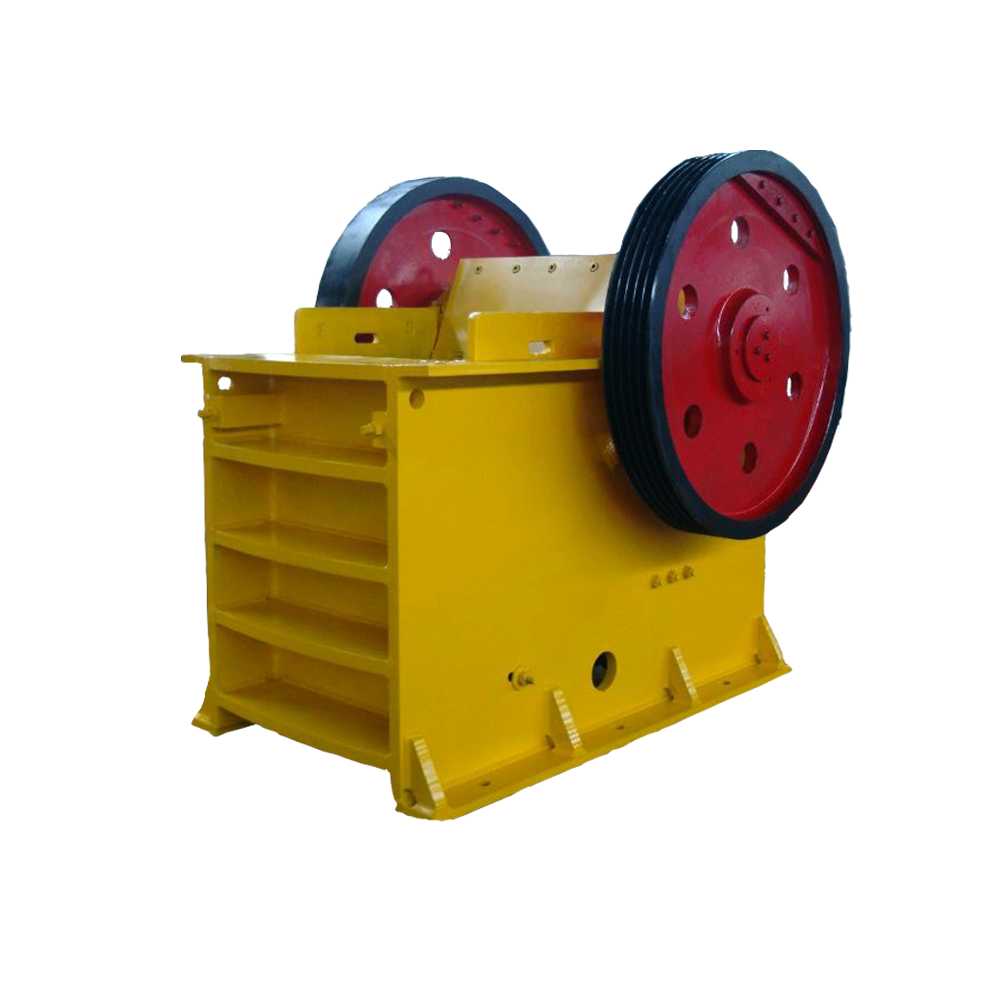

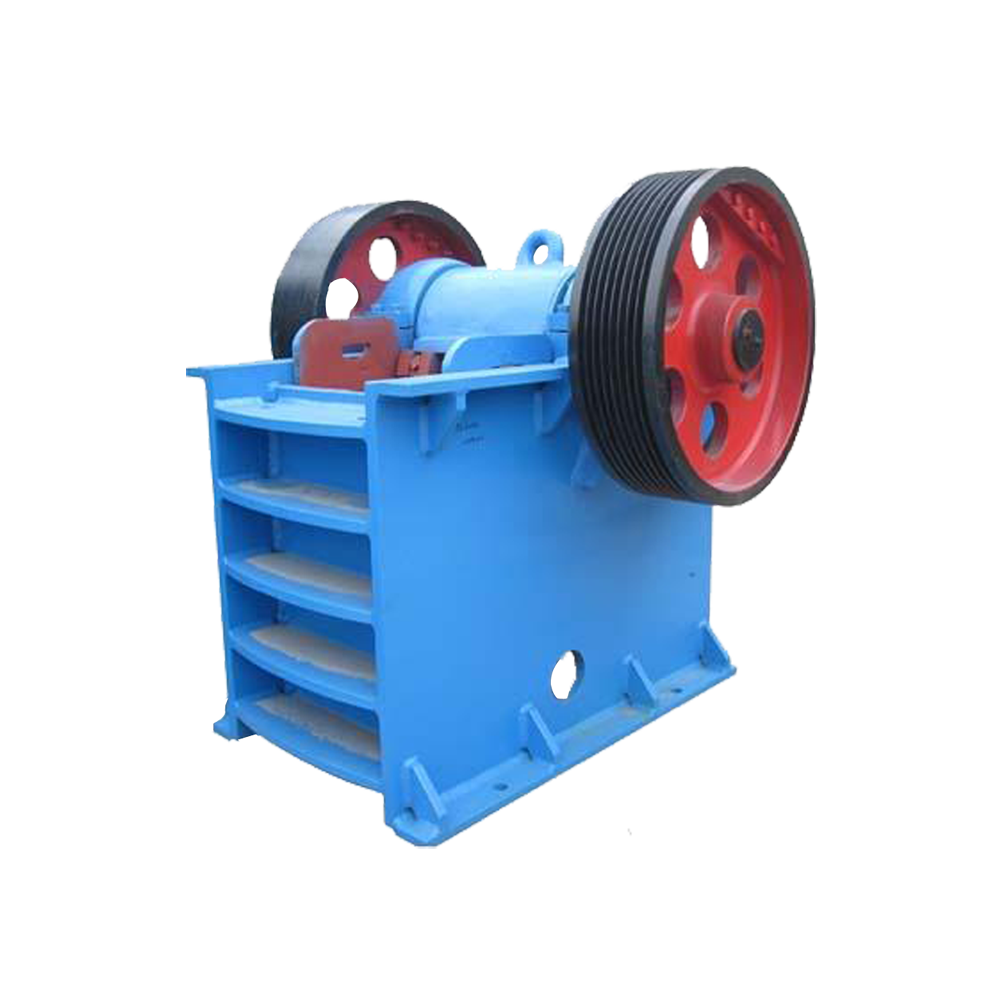

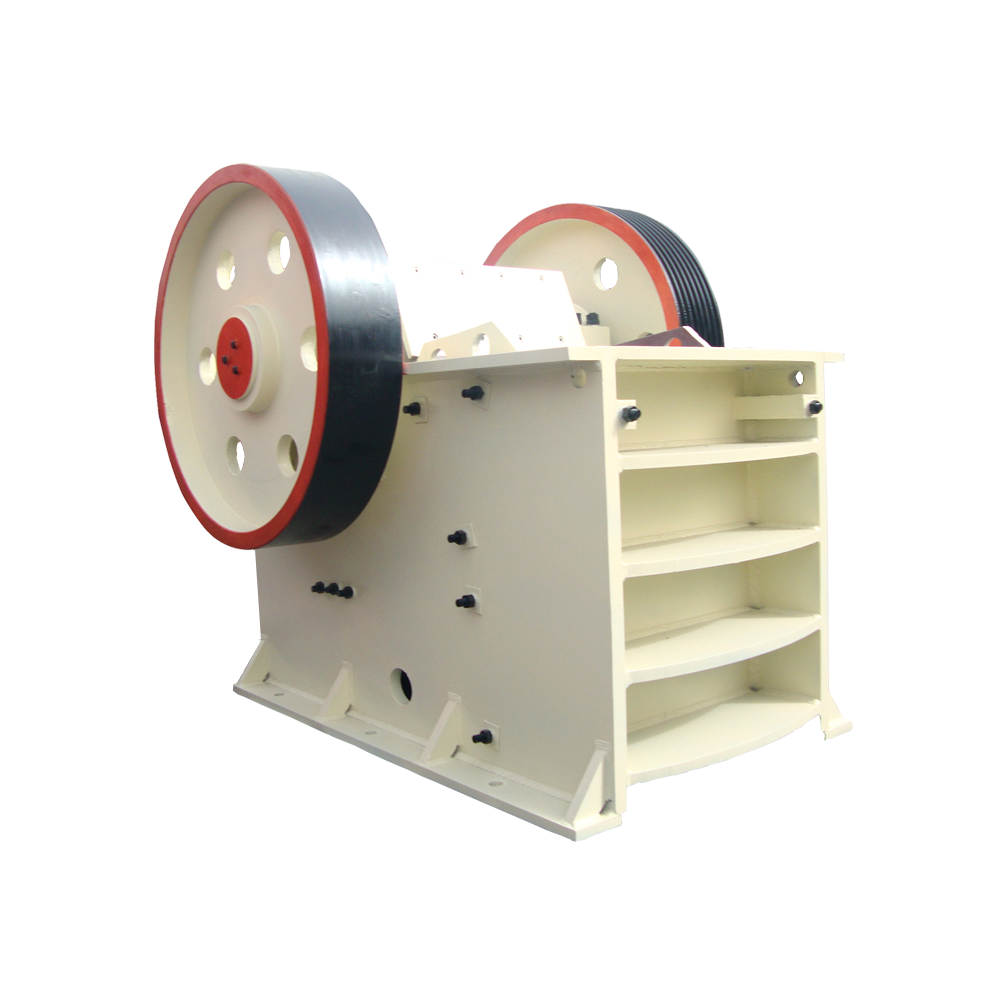

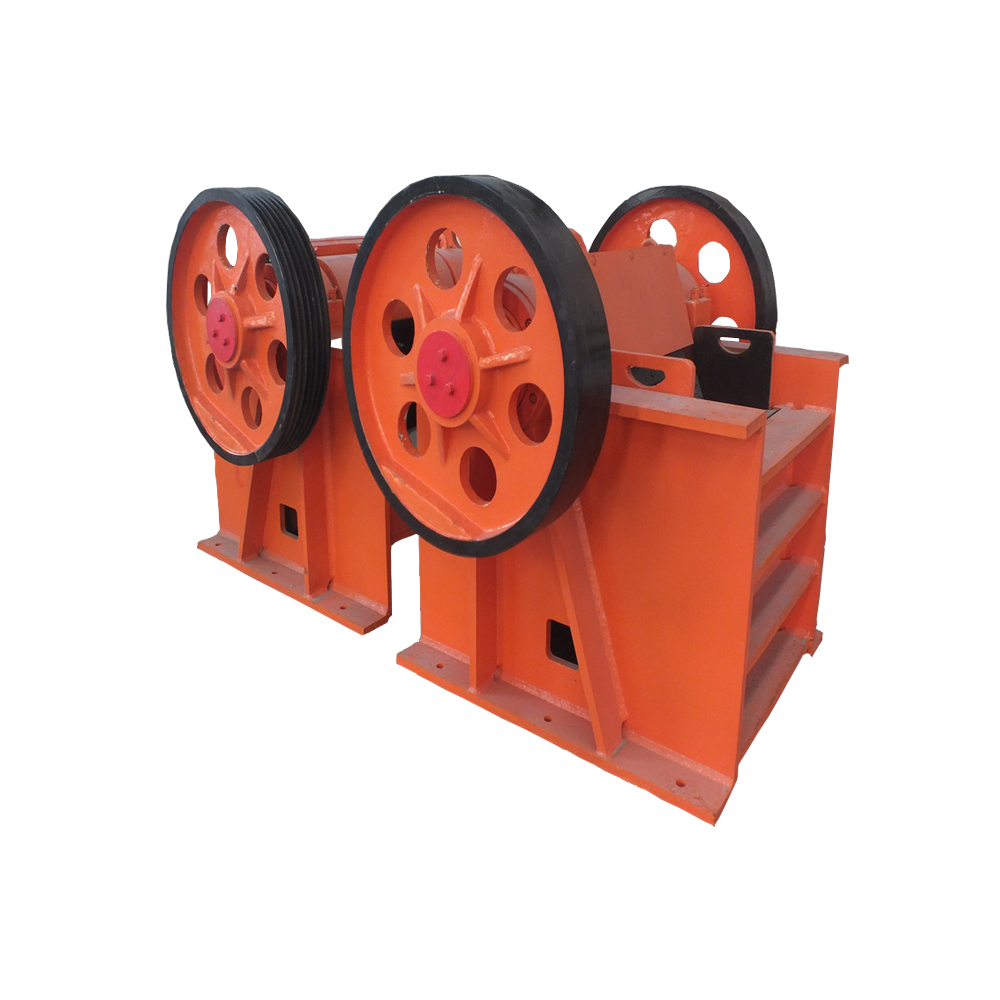

Jaw Crusher
-
High Crushing Strength: It can handle large-size raw stones with strong compression resistance, suitable for various hard rocks with high crushing efficiency.
-
Robust & Durable Structure:Adopt cast steel frame with strong load capacity. High manganese jaw plates are wear-resistant and impact-resistant for long continuous operation.
-
Easy Adjustment & Stable Operation: Discharge gap can be adjusted conveniently. The machine runs smoothly with low failure rate and easy maintenance.
-
Wide Compatibility: It can be installed on fixed production lines or mobile crushing plants, compatible with mining, aggregate and solid waste recycling projects.
1. Product Overview
Jaw crusher, commonly known as toggle jaw crusher, is the primary coarse crushing machine for stone production lines. It crushes bulk stones through periodic reciprocating extrusion of movable jaw plate. With sturdy structure and strong compression resistance, it is widely used for primary crushing of large raw ore and serves as standard primary equipment in aggregate and mineral processing plants.
2. Detailed Description
The motor drives the eccentric shaft to rotate and pushes the movable jaw to swing back and forth periodically. When the movable jaw closes to the fixed jaw, materials are crushed by extrusion, bending and splitting. When the movable jaw retreats, crushed materials fall down by gravity and discharge continuously.
3. Why Choose Us
-
Large feeding size, dedicated primary crushing, big reduction ratio: Adopts jaw extrusion crushing, handles large raw stones, the first-choice primary crushing equipment to greatly reduce raw material size.
-
High pressure resistance, process both soft and hard ores: Suitable for granite, basalt, iron ore, limestone and other ores, works for materials with compressive strength below 350MPa.
-
Stable and durable structure, ultra-low failure rate: Thickened heavy frame, reinforced eccentric shaft and jaw plates, fit for long-term 24-hour heavy-load continuous operation.
-
Easy discharge size adjustment, low energy consumption: Discharge gap adjusted by gaskets for flexible grain size control; pure extrusion crushing reduces power consumption under same throughput.
-
Simple replacement of wear parts, low maintenance cost: Split jaw plates for separate replacement of worn parts, easy disassembly and inspection to shorten downtime.
-
Complete model range for various working scenarios: Full series of small, medium, heavy-duty and mobile jaw crushers, widely used for primary crushing in mines, aggregate yards, construction waste and tunnel stone processing.
4. Specifications & Technical Data
| Parameter Item | PE-600×900 | PE-750×1060 | CJ106 (Euro) | CJ150 (Euro) |
| Feed Opening Size (mm) | 600×900 | 750×1060 | 1060×700 | 1400×1200 |
| Max Feed Size (mm) | 500 | 630 | 560 | 960 |
| Discharge Opening (mm) | 65-160 | 80-140 | 70-200 | 125-250 |
| Capacity (t/h) | 50-180 | 110-320 | 150-500 | 340-880 |
| Motor Power (kW) | 55 | 110 | 110 | 200 |
| Dimensions (L×W×H) (mm) | 2190×2206×2300 | 2660×2430×2800 | 3280×2510×2400 | 5040×3445×3970 |
