Multi-Frequency Vibrating Screen-XC
-
Ultra-high Vibration Intensity Relaxation Self-cleaning, Zero Blockage for Sticky Wet Materials: Vibration acceleration is 7 times higher than ordinary screens. High-frequency relaxation deformation of polyurethane panels avoids mesh clogging during long-term continuous operation of 10%-15% moisture sticky lump ore and weathered aggregate, drastically cutting downtime for manual cleaning.
-
Separate Frequency & Amplitude Regulation by Sections, Dual Effect of Stratification & Penetration: Vibration parameters of each section are independently adjustable: feeding section disperses & stratifies, rear sections realize fine screening. Screening efficiency increases by over 12% compared with standard linear screens under identical working conditions, greatly lifting fine powder recovery rate.
-
Static Non-vibrating Cabinet, Greatly Reduced Foundation Load: Only screen decks vibrate, total vibrating mass is much lower than traditional screens with dynamic-static load cut by over 50%. The machine weighs 30% lighter with equal throughput, no foundation reinforcement required and civil construction cost reduced by half.
1. Product Overview
Multi-Frequency XC Screen is a segmented independent relaxation composite screening machine customized for high-moisture & high-viscosity lump ore and aggregate soil removal working conditions. It adopts split structure with multi-layer & multi-section independent relaxation screen decks. The whole screen frame stays static without vibration, and each section is equipped with separate frequency-conversion excitation units to independently set dual modes: low frequency & large amplitude for material stratification, high frequency & small amplitude for fine particle penetration. Its vibration inertial force reaches 22.85 times of gravity, far exceeding conventional screening machines, thoroughly solving blocking, caking and stratification difficulties of sticky wet materials. Equipped with high-elastic polyurethane relaxation panels that realize powerful self-cleaning via continuous reciprocating deformation; fully enclosed static sealed cabinet with optional thermal insulation rock wool to adapt to high & low temperature materials. Featuring lightweight split modular design with ultra-low foundation load and low civil engineering cost, it is heavy-duty high-efficiency screening equipment specially for iron & steel lump ore, wet aggregate, sticky raw coal and metallurgical sinter materials.
2. Detailed Description

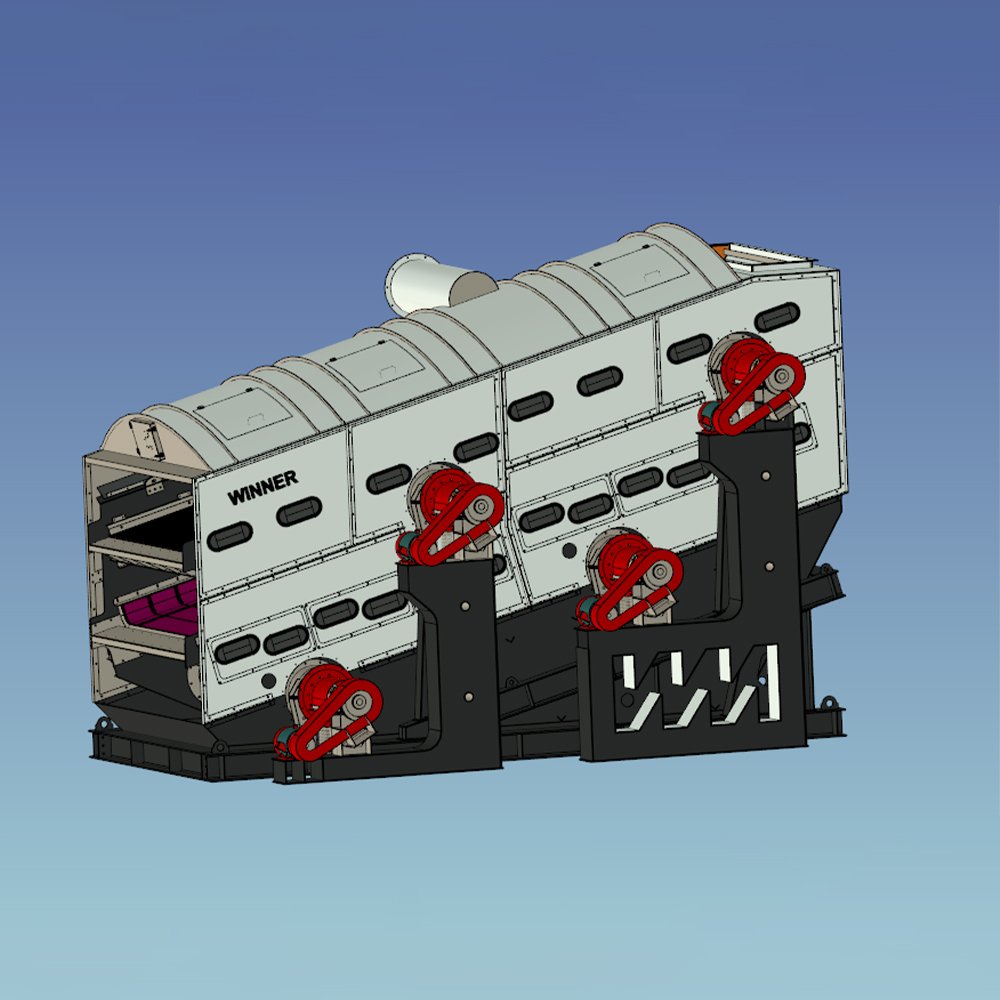

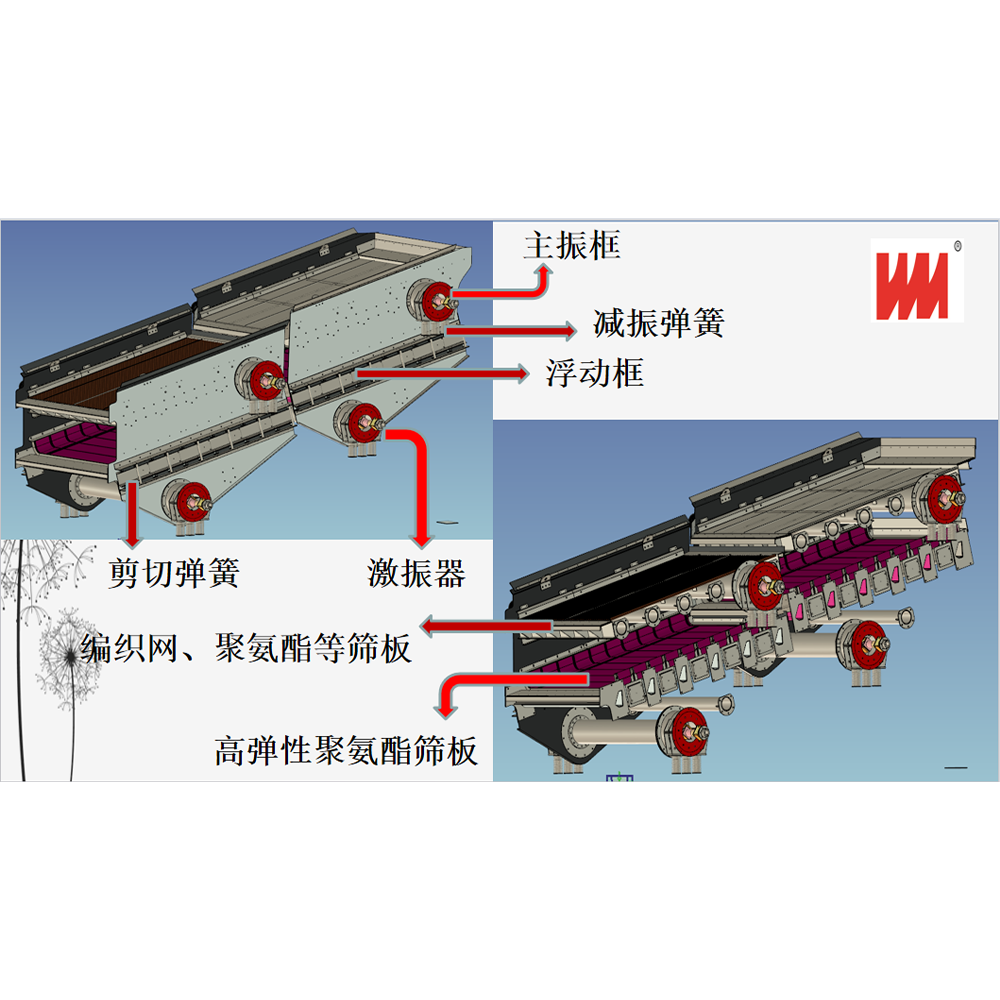

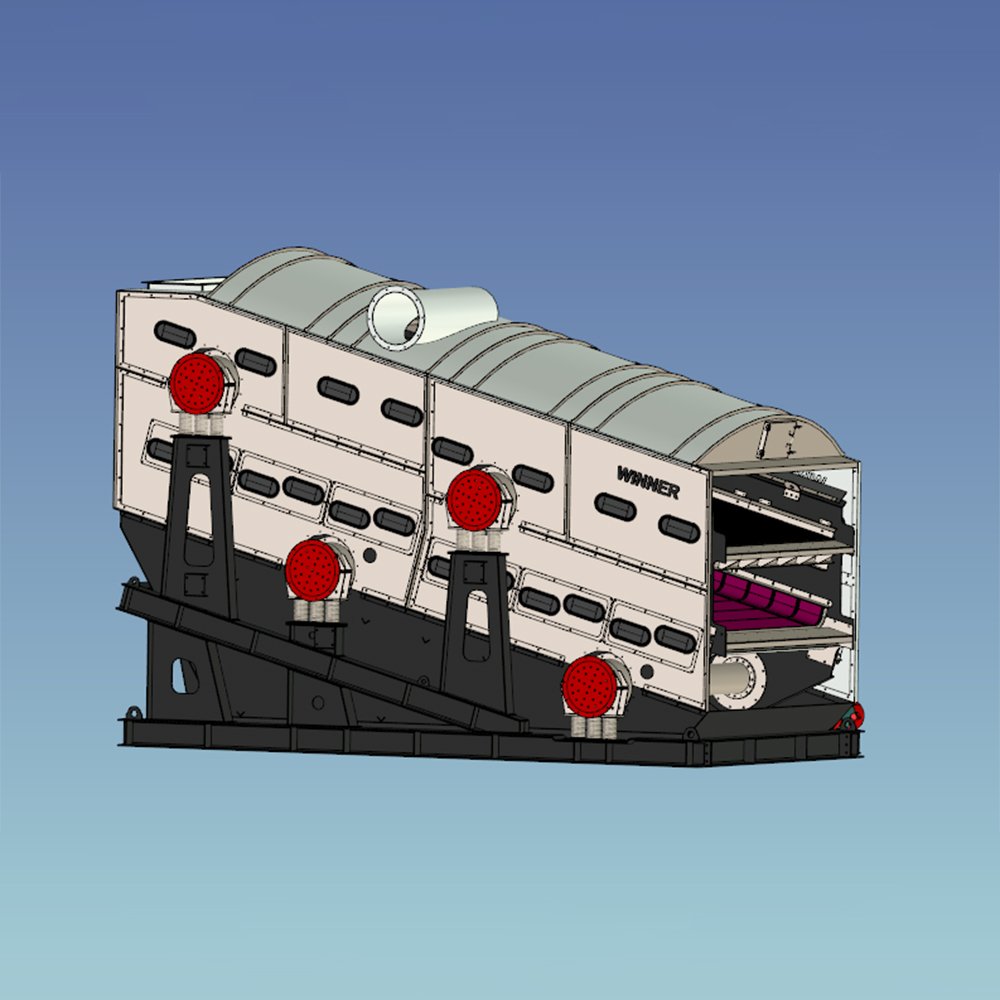

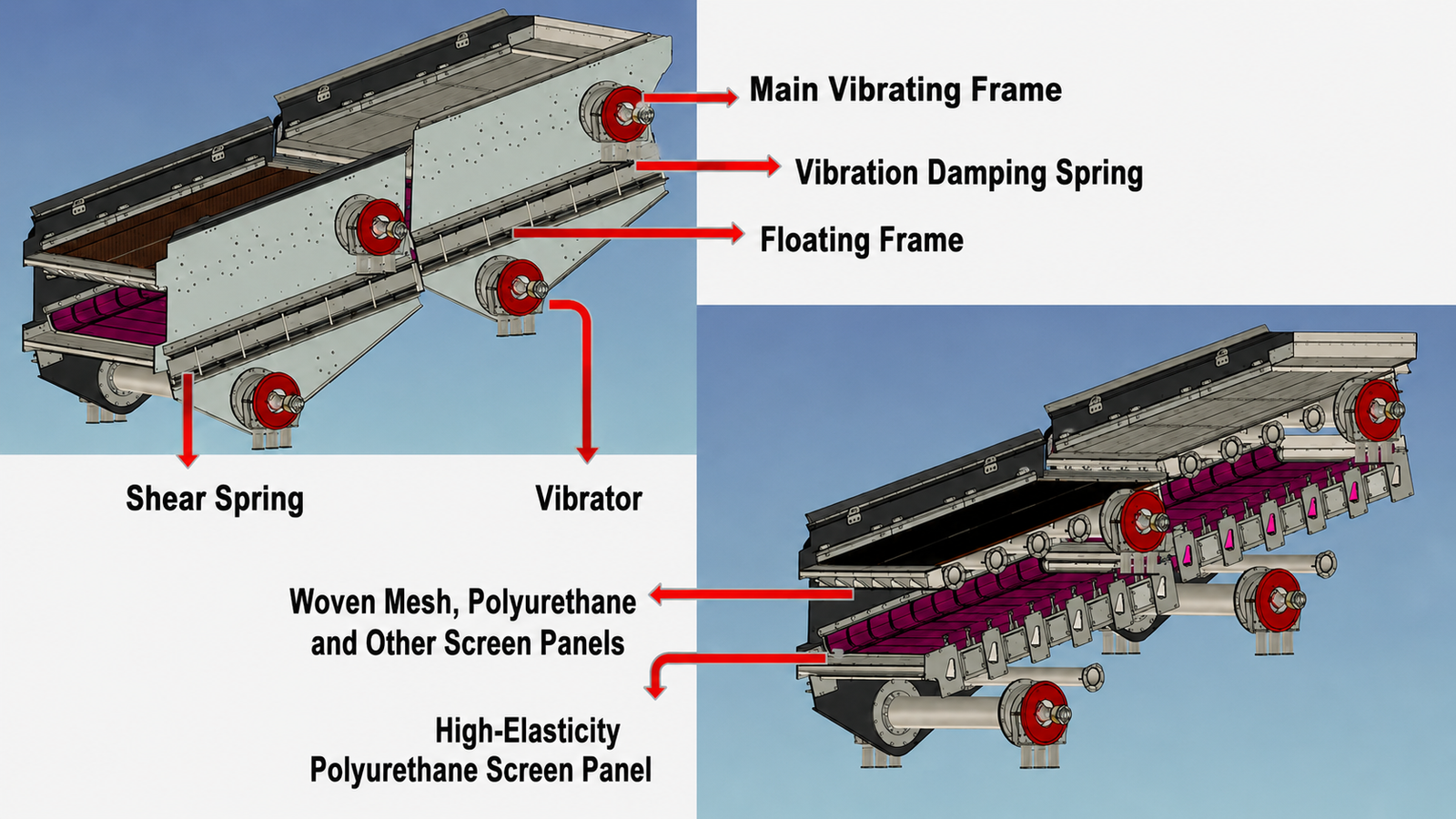

The machine consists of multi-layer and multi-section independent relaxation screening units. The base cabinet remains completely static, only polyurethane panels perform high-intensity reciprocating relaxation vibration. The feeding section adopts low frequency & large amplitude to generate strong throwing force for rapid dispersion of bonded ore lumps and thick layer stratification; middle and discharge sections switch to high frequency & small amplitude to boost fines penetration. Continuous stretch-shrink deformation of screen panels peels off adhered silt constantly to eliminate mesh clogging. Height difference between sections realizes secondary material spreading and stratification for fast separation of lumps and fines. The frequency conversion system freely switches linear / compound elliptical vibration tracks, suitable for lump ore and aggregate with moisture content ≤20% and varying viscosity. Full cabinet negative-pressure sealing ensures zero dust leakage during screening.
3. Materials
10%-20% moisture sticky iron lump ore, sinter ore, high-silt aggregate, weathered ore, raw coal, wet coal slime, coke, steel slag, limestone, clay, dense medium coarse materials; lump & granular muddy raw materials with particle size ≥1.5mm.
4. Why Choose Us
-
Static screen box + independent flip-flow multi-frequency decks, separate frequency & amplitude adjustment per section, dedicated for sticky wet ore: Stationary outer frame without vibration, only internal segmented flip-flow decks with independent vibrators. Each section adopts low-frequency large amplitude for lump breaking and high-frequency small amplitude for screening. Vibration intensity 7 times higher than standard screens, suitable for rainy sticky aggregate, agglomerated coal slime and high-moisture tailings with over 10% higher screening efficiency than linear screens.
-
Multi-section flip-flow 3D material throwing & stratification, powerful desliming for wet feed with drastically reduced blinding: Reciprocating stretch & rebound of elastic flip-flow decks throws materials into loose 3D layers to fully separate clay and fines. Effective desliming without continuous high-pressure flushing, eliminates blinding of rainy aggregate and sticky coal, minimizing fine particle loss.
-
Lightweight modular static frame, ultra-low vibration transmission to cut plant foundation cost: Hollow high-strength light main beams and segmented modular assembly for stationary frame. Non-vibrating outer box reduces ground dynamic & static load by over 60%. No heavy reinforced damping base required for old yards or simple concrete floors, shortening construction schedule.
-
High-elastic PU flip-flow panels, bidirectional stretch self-cleaning, anti-blinding for feed up to 22% moisture: High-tensile PU flip-flow panels deform bidirectionally to eject stuck clay and slime during operation. Stable continuous screening for 15%-22% moisture coal, weathered clay aggregate and thick tailings slurry, less manual cleaning downtime, screen service life extended 3.6 times.
-
Full polyurea wear protection for all contact zones, fatigue-crack-free static frame for long wet service life: All slurry and clay contact surfaces coated with thick polyurea against erosion. Static frame avoids alternating vibration stress, laser cutting, robotic welding and stress relief eliminate weld cracking risks for long-term service under high-sediment sticky slurry conditions.
-
Segmented independent vibrator modules, offline single-section maintenance, low downtime loss for 24h continuous production: Each flip-flow section operates independently, allowing offline maintenance of single deck without full-line shutdown. External long-life grease lubrication prevents oil leakage, intelligent online monitoring alarms abnormal temperature, amplitude and bearing faults for non-stop mine production lines.
5. Specifications & Technical Data
| Working Principle | Fixed frame + segmented independent flip-flow screen panels |
| Vibration Intensity | 22.85G vs 3.23G of conventional screen |
| Material Throwing Speed | times higher than ordinary screen |
| Sieving Efficiency | ≥88% for wet lump ore, ≥92% for dry grading |
| Screen Panel Material | High elastic PU flip-flow panel |
| Self-cleaning Capacity | Anti-adhesion capacity 7× ordinary screen |
| Sealing Type | Full static rigid seal, negative pressure dedusting |
| Foundation Dynamic Load | Over 60% lower than circular vibrating screen |
| Operating Noise | Built-in sound insulation |
| Control System | PLC touch screen, remote & local dual control |
| Power Supply | 380V/50Hz |
| Model No. | WFPS-XC1842 | WFPS-XC2050 | WFPS-XC2550 | WFPS-XC25100 |
| Screen W×L (mm) | 1800×4200 | 2000×5000 | 2500×5000 | 2500×10000 |
| Single Deck Effective Area (㎡) | 7.6 | 9.8 | 12.3 | 24.8 |
| Independent Flip-flow Units | 4 组 | 4 组 | 4 组 | 8 组 |
| Single Vibrator Power (kW) | 7.5 | 7.5 | 7.5 | 7.5 |
| Total Installed Power (kW) | 30 | 30 | 30 | 60 |
| Variable Frequency Speed (r/min) | 720~1440 | 720~1440 | 720~1440 | 720~1440 |
| Adjustable Screen Inclination (°) | 6~15 | 6~15 | 6~15 | 6~15 |
| Standard Aperture (mm) | 6~12 | 6~12 | 6~20 | 6~30 |
| Max Feed Size (mm) | ≤150 | ≤150 | ≤150 | ≤150 |
| Applicable Material Moisture | 8%~30% | 8%~30% | 8%~30% | 8%~30% |
| Standard Throughput (t/h) | 160~240 | 220~300 | 280~340 | 460~620 |
| Machine Net Weight (t) | 17.2 | 19.1 | 21 | 56.8 |
| Overall Dimension(L×W×H,mm) | 4500×3200×3600 | 5300×3600×4000 | 5300×4800×4200 | 10000×4800×5400 |
