Crawler Welding Robot
-
Conquer Rugged Terrains: Move effortlessly across harsh construction sites.
-
Reduce Labor Costs: Cut certified welder expenses by 60%.
-
Maximize Welding Efficiency: Achieve continuous factory-grade automated output.
-
Simplify Field Operation: Deploy quickly via plug-and-play HMI.
1. Product Overview

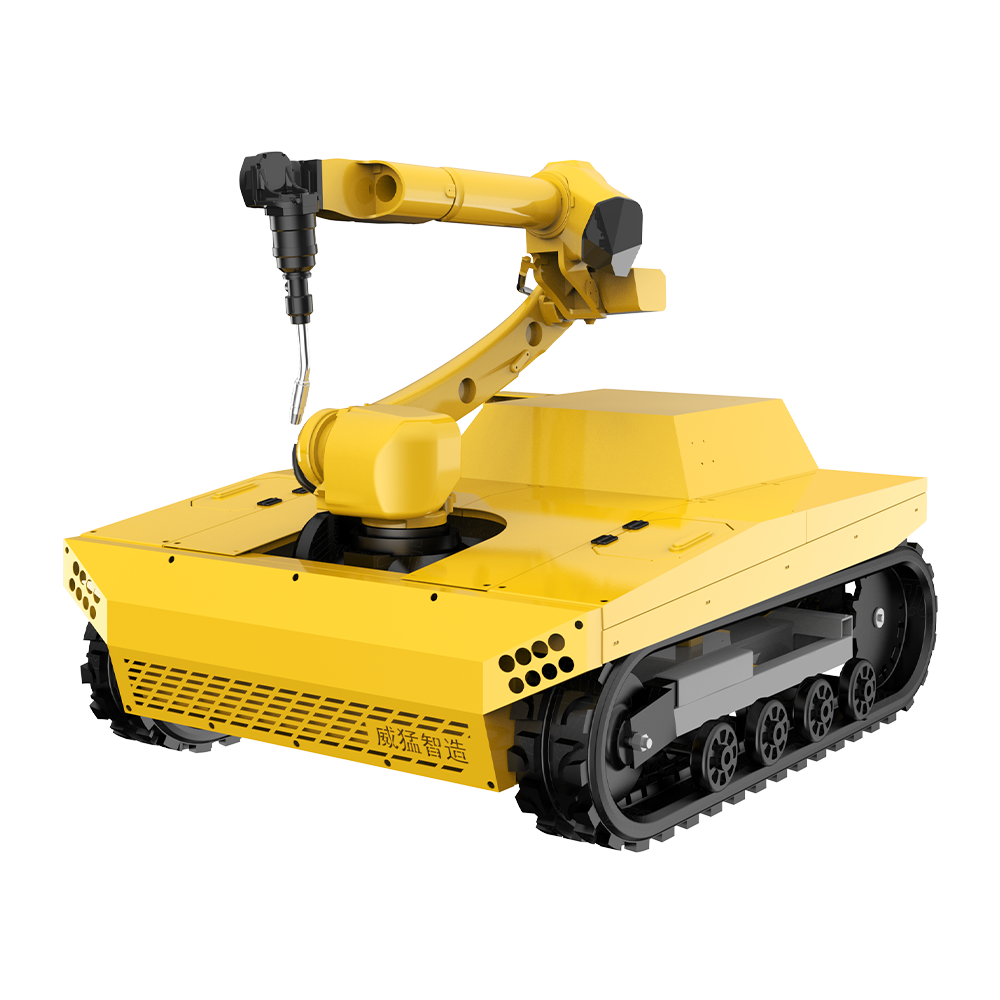

The Xiaomeng Crawler Welding Robot is an intelligent self-propelled welding equipment independently developed by Winner Group, specially designed for heavy steel structures, long-distance pipelines, ship components, large mining equipment and other oversized non-standard workpieces. Integrated with an all-terrain rubber crawler chassis and high-precision 6-axis flexible welding manipulator, it breaks the spatial restrictions of traditional fixed welding stations. Without hoisting or flipping huge workpieces, the robot can autonomously travel to complex working sites such as factories, open-air construction yards, ship docks and field infrastructure projects. It brings standardized and stable workshop welding performance to harsh outdoor working conditions to realize full-scene automatic welding, and effectively replace manual welding posts with high risk and heavy smoke.
2. Detailed Description
Traditional fixed welding machines only work at limited stations, while transferring large workpieces and building high-altitude scaffolds bring high costs and prominent safety hazards. The Xiaomeng crawler welding robot boasts strong off-road performance, moving smoothly on steel plates, mud ground, gentle slopes and narrow passages to reach the welding seams of large fixed workpieces directly. The whole machine supports multiple mainstream welding processes including CO₂ shielded welding, MIG welding and TIG welding, matching application scenarios such as oil & gas pipeline laying, mining equipment maintenance, bridge infrastructure and tank manufacturing. Equipped with an all-weather protected integrated intelligent touch control system, the robot allows operators to quickly plan welding paths via on-site visual teaching without complicated programming skills. It maintains stable autonomous welding operation even in remote areas with incomplete power supply and harsh windy, sandy, rainy or snowy environments.
Why Choose Us
-
All-terrain Self-propelled Design, Free from Fixed Station Limits： Fitted with rubber crawler chassis, it moves smoothly on steel plates, mud, slopes and narrow aisles. No hoisting or flipping of giant workpieces is required. It can directly operate in wild construction sites, shipyards and open-air factories, removing workpiece transportation and high-altitude scaffold work, and avoiding safety hazards of overhead operation.
-
6-axis High-precision Manipulator, Stable Workshop-standard Welding Quality: The 6-axis flexible welding manipulator supports full-position welding including flat, vertical, horizontal and overhead welding with high positioning accuracy and uniform weld appearance. It supports mainstream welding processes like CO₂ shielded welding, MIG and TIG. It maintains standardized welding performance under harsh outdoor conditions and greatly cuts weld rework rate.
-
Easy Intelligent Control, Weatherproof Structure for Outdoor Harsh Conditions: The integrated visual teaching controller enables ordinary welders to quickly set welding paths on site without professional programming knowledge. The whole machine is dustproof, rainproof and sandproof, enabling stable autonomous operation in remote wild areas and rainy, windy & sandy environments.
-
Automated Continuous Operation, Cut Costs & Replace High-risk Manual Work: turing high temperature, heavy smoke and high altitude, reducing safety accidents and welders’ occupational diseases, and alleviating the industry’s welder shortage.
-
Multi-industry Compatibility for All Kinds of Heavy Oversized Non-standard Workpieces: Custom-built for heavy steel structures, long-distance oil and gas pipelines, ship parts, large mining machinery, storage tanks and other extra-large workpieces. A single unit covers welding requirements across infrastructure, shipbuilding, oil & gas and mining sectors.
| Parameter | Value |
| Name | Self-propelled full-scene large-scale welding robot (Xiaomeng a leopard) |
| Model | WMM-10iD/8LHF500 |
| Net weight | 1270KG |
| Dimensions | 205413851652mm |
| Minimum turning radius | 1100mm |
| Battery parameters | 48v、140Ah |
| Number of batteries | 1 |
| Maximum driving safety speed | 3Km/h |
| Cruising range | 19Km |
| Horizontal weld width | LT650-H4012mm |
| Vertical welding height | LT915-V3270mm |
| System power | 26.8KW |
| Repeatability accuracy | ±0.03mm |
| Welding method | Argon (80%) +Carbon dioxide (20%) or carbon dioxide |
| Welding posture | Horizontal welding, flat welding, vertical welding, Overhead Welding |
| Wire specifications | Diameter φ0.8mmφ1.6mm-welding wire |
| The robot itself | FANUC M-10iD/8L |
