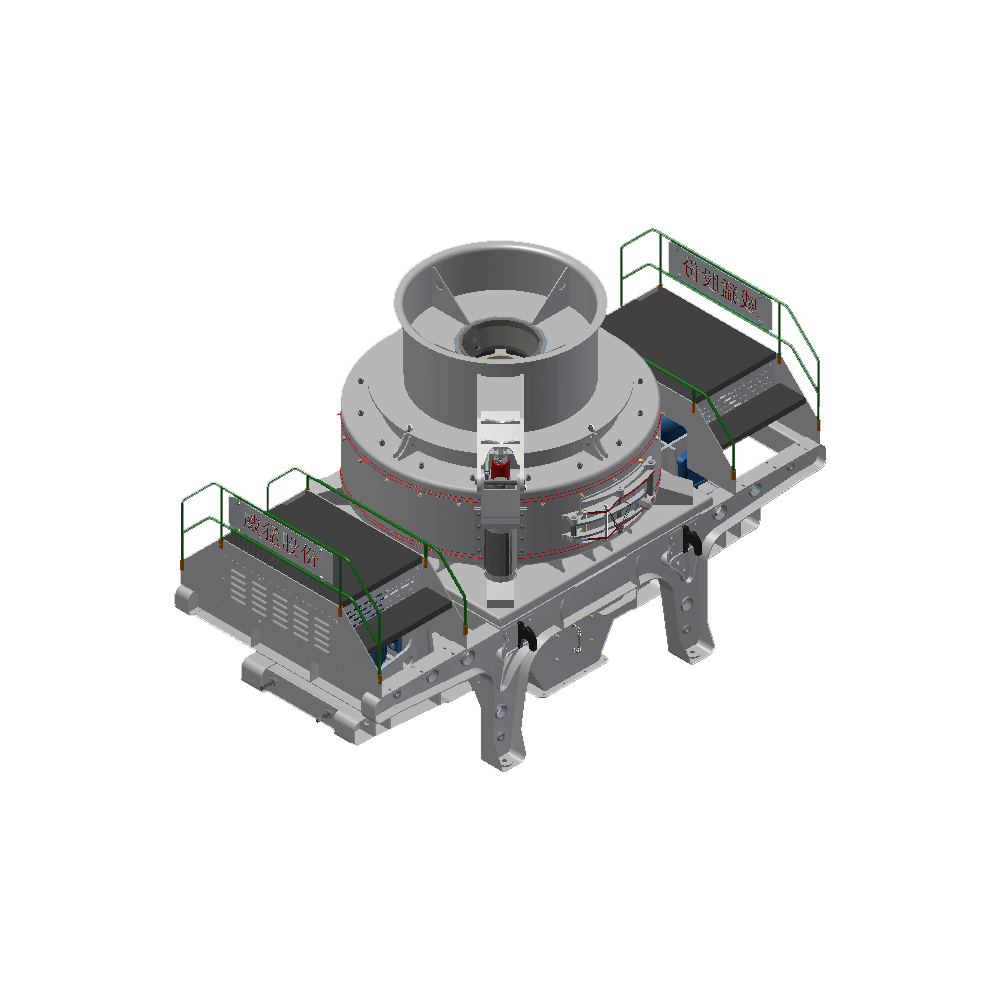

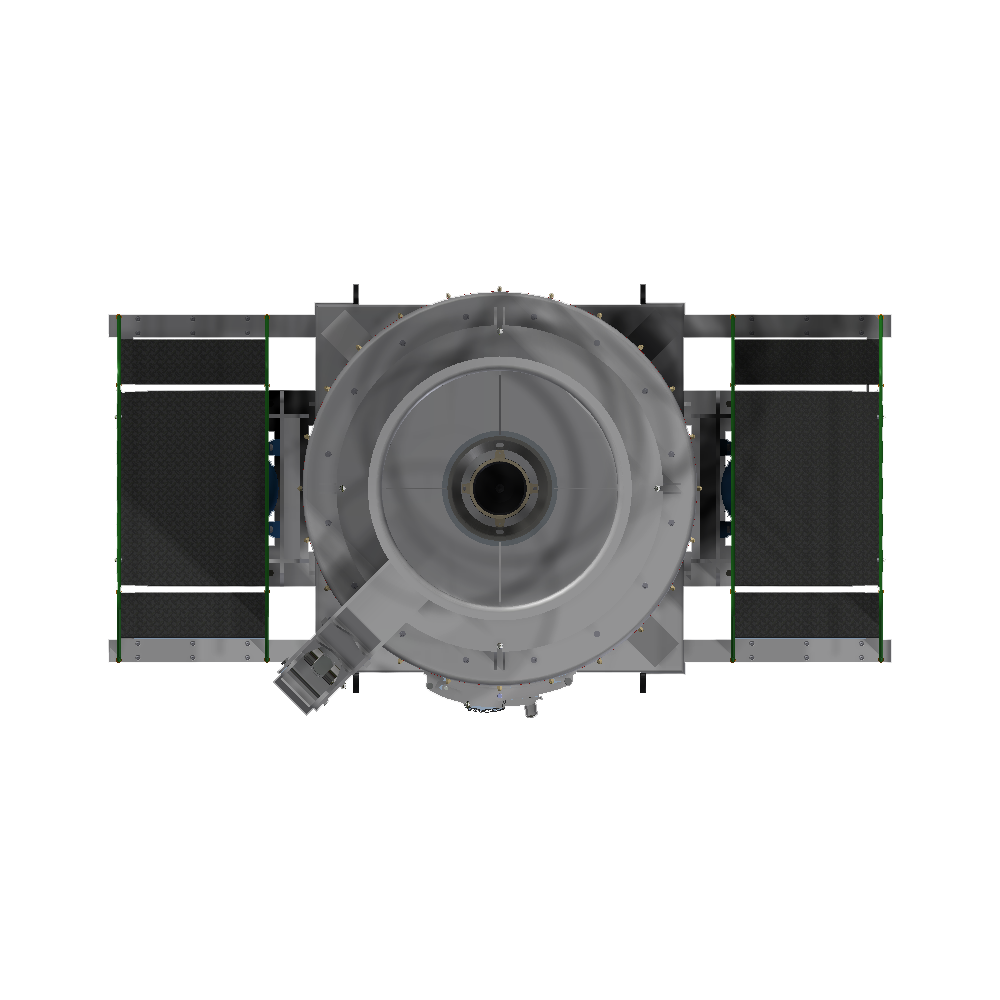

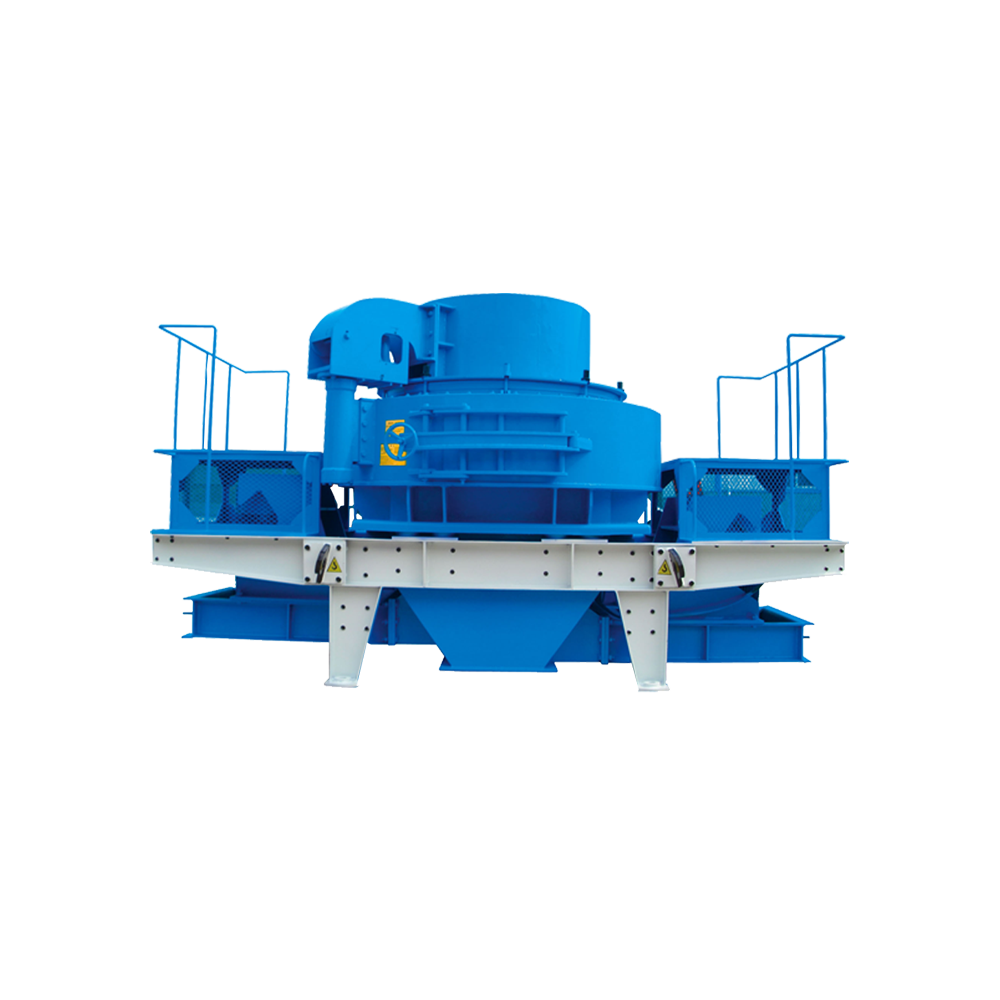

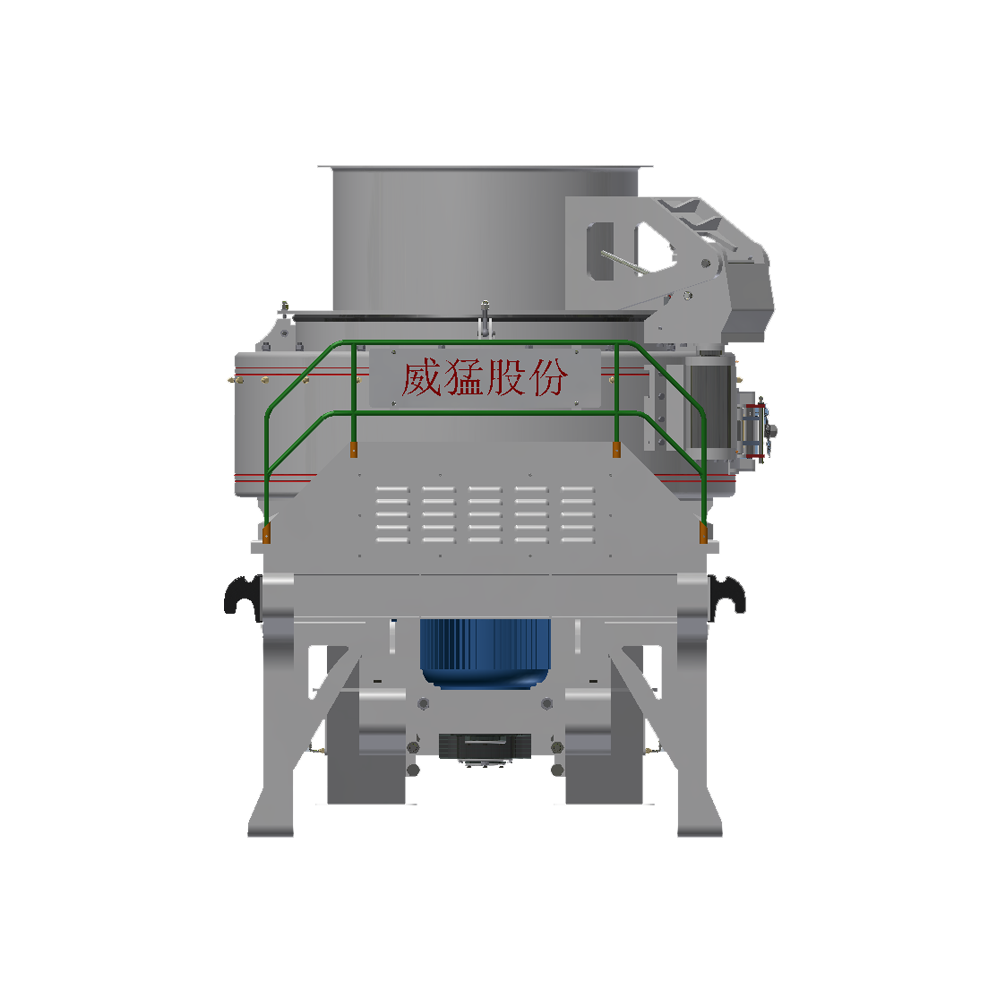

Vertical Shaft Impact Crusher
-
Excellent Shaping Performance: Rock-on-rock crushing greatly reduces flakiness content, producing well-shaped sand that meets standards for highway, bridge and high-grade concrete.
-
Low Wear & Long Service Life:Most crushing is finished by material collision instead of direct hammering, which reduces abrasion and extends service cycle of wear parts.
-
High Automation & Stable Operation: Equipped with thin oil lubrication, temperature control and variable frequency feeding system, it can run continuously for 24 hours with low failure rate.
-
Wide Application: Suitable for both hard rock sand making and aggregate shaping, flexible to match various production lines.
1. Product Overview
Vertical Shaft Impact Crusher (VSI) is also called vertical sand making machine, which is professional equipment for fine crushing and aggregate shaping. Adopting vertical high-speed impeller feeding structure, it works with two crushing modes: rock-on-rock and rock-on-iron. Materials are crushed and shaped through high-speed collision, producing well-rounded aggregates. It is the key equipment for high-quality manufactured sand production.
2. Detailed Description
Materials enter the crushing cavity via central feeding and cascade feeding. Driven by the main shaft, the impeller rotates at high speed and throws materials out under centrifugal force. Materials collide violently with cascade materials or wear guards, then be crushed by repeated impact, friction and grinding. Qualified sand and aggregates are discharged from the bottom.
3. Why Choose Us
-
Rock-on-rock crushing principle, excellent aggregate shape: Materials collide and grind mutually, high cubic ratio and low flaky particles, suitable for high-standard engineering aggregate and manufactured sand.
-
Integrated fine crushing and sand making, adjustable particle size: Adjust impeller speed and overflow opening to produce 0-5mm sand, widely used for dry mortar and aggregate production.
-
Process hard rock with strong wear-resistant components: High-chromium alloy impact blocks, capable of crushing river pebbles, granite, basalt and other abrasive hard stones.
-
Vertical compact structure, small footprint and flexible installation:Vertical layout saves space without heavy foundation, can be used alone or matched with fixed and mobile crushing stations.
-
Low operation vibration, stable long-term continuous production: Balanced centrifugal impact force, meets environmental standards with dust collector, supports 24-hour non-stop operation.
-
Diversified applicable scenarios for multiple industries: Widely applied in artificial sand making, mineral fine crushing, construction waste recycling aggregate and quartz sand processing lines.
4. Specifications & Technical Data
| Model | Max Feed Size(mm) | Capacity(t/h) | Motor Power(kW) | Dimensions(mm) |
| VSI-3000 | 45(70) | 30-60 | 55-90 | 3080×1757×2126 |
| VSI-4000 | 55(70) | 50-90 | 110-150 | 4100×1930×2166 |
| VSI-5000 | 65(80) | 80-150 | 150-220 | 4300×2215×2427 |
| VSI-6000 | 70(80) | 120-250 | 220-320 | 5300×2728×2773 |
| VSI-7000 | 70(80) | 180-350 | 264-400 | 5300×2728×2863 |
| VSI-8000 | 80(150) | 250-380 | 400-440 | 6000×3000×3420 |
| VSI-9000 | 80(150) | 380-600 | 440-630 | 6000×3022×3425 |
| VI-3000 | 45(70) | 30-60 | 55-90 | 3080×1757×2126 |
| VI-4000 | 55(70) | 50-90 | 110-150 | 4100×1930×2166 |
| VI-5000 | 65(80) | 80-150 | 150-220 | 4300×2215×2427 |
| VI-6000 | 70(100) | 120-250 | 220-320 | 5300×2728×2773 |
| VI-7000 | 70(100) | 180-350 | 264-400 | 5300×2728×2863 |
| VI-8000 | 70(100) | 250-380 | 320-440 | 5500×2565×3178 |
| VI-8000(II) | 80(150) | 320-600 | 440-560 | 6000×3000×3420 |
| PL-700 | 30 | 20-60 | 55-90 | 4170×1982×2191 |
| PL-850 | 40 | 80-130 | 110-132 | 5040×2250×2800 |
| PL-840 | 50 | 120-150 | 220×2 | 5510×2150×3550 |
| PL-860 | 50 | 130-200 | 250×2 | – |
