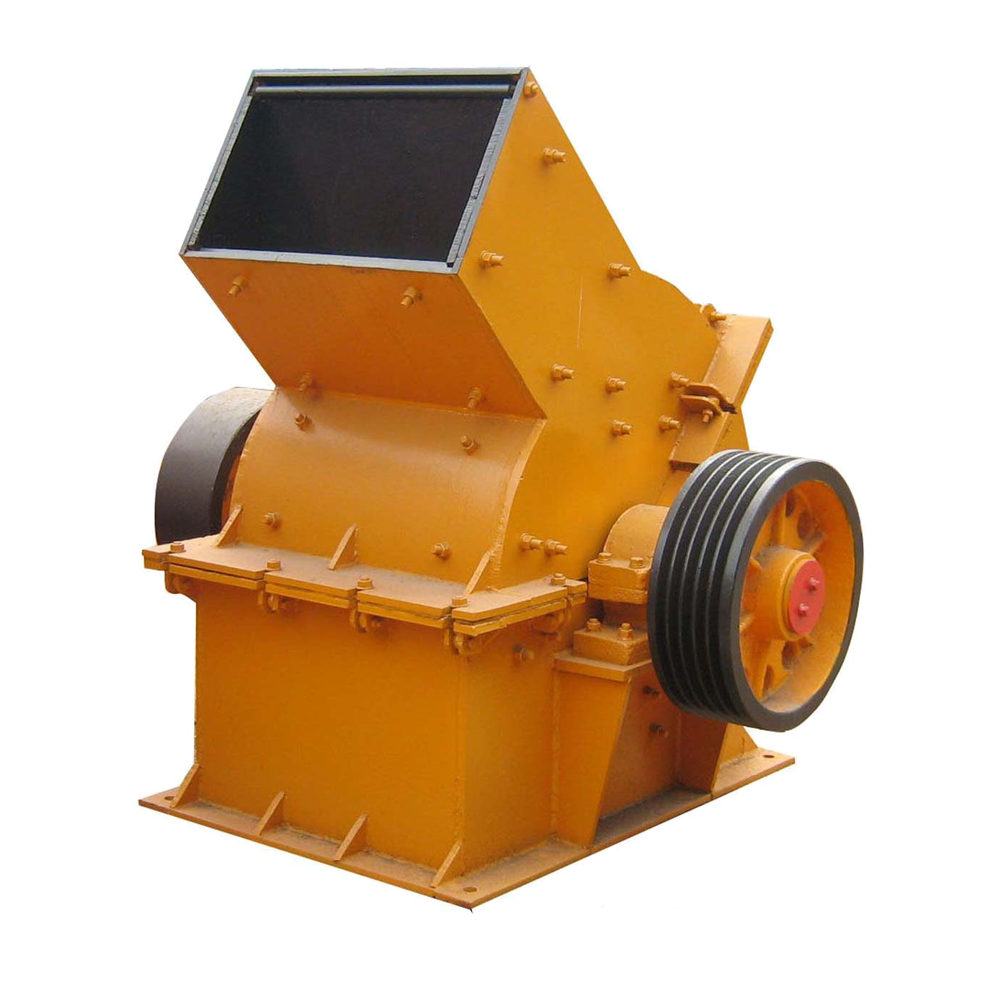

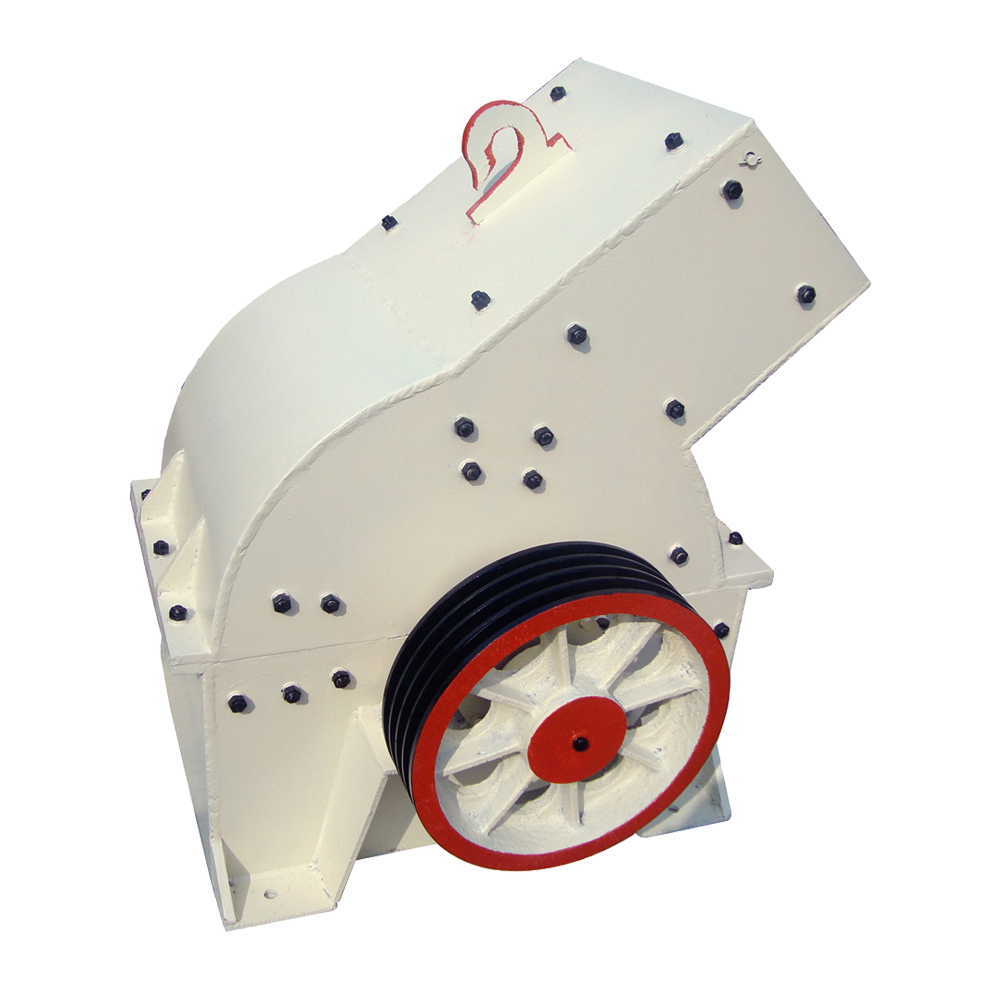

Hammer Crusher
-
One-step Crushing & Short Flow: Large feeding size and big crushing ratio, one machine can replace primary and secondary crushing to save investment.
-
Simple Structure & Cost-effective: Compact structure with small footprint and low purchase cost, ideal for small and medium stone processing plants.
-
Uniform Discharge Size: Output size can be adjusted by replacing screen bars, easy operation and uniform finished particles.
-
Quick Maintenance: Side opening design facilitates quick replacement of hammers and liners, reducing maintenance time and cost.
1. Product Overview
Hammer crusher is a single-stage impact crushing machine. It crushes materials by high-speed hammer impact, which can crush large stones into medium and small particles in one pass. Featuring short process flow, fast discharging and high cost performance, it is widely used for primary and secondary crushing of medium-low hardness brittle materials.
2. Detailed Description
The motor drives the rotor to rotate at high speed. Materials entering the crushing cavity are struck, impacted and sheared by hammers. Broken materials collide with liners for secondary crushing. Particles smaller than screen gaps are discharged from the bottom, while oversized materials are hammered repeatedly.
3. Why Choose Us
-
One-step forming with large reduction ratio, simplified production process: High-speed hammer impact crushing processes raw stones into finished materials directly, cutting investment of multi-stage crushing equipment.
-
Suitable for medium & low hardness materials with wide application:It can crush brittle materials such as limestone, coal, coal gangue, shale and construction waste.
-
Simple overall structure, small floor occupation: Integrated machine design without complex supporting steel frame, fast installation and flexible workshop layout.
-
Grate bars at bottom control material, uniform discharge particle size: Different sizes of grate bars can be replaced to adjust discharge fineness, meeting production demands of brick making and fine powder processing.
-
Openable inspection housing, time-saving parts replacement: The machine shell can be opened quickly for easy disassembly of hammers, liners and grate bars, reducing maintenance downtime.
-
Low equipment investment, ideal for small and medium production lines: Cost-effective price with moderate power consumption, perfect for small aggregate plants, brick factories and power plant raw material crushing.
4. Specifications & Technical Data
| Parameter Item | PC-1010 | PCZ-1308 | PCZ-1615 | PCZ-2225 |
| Rotor Dia. × Length (mm) | Φ1000×1000 | Φ1330×790 | Φ1600×1500 | Φ2200×2500 |
| Feed Opening Size (mm) | 1060×740 | 870×780 | 1570×1140 | 2530×1610 |
| Max Feed Size (mm) | ≤200 | ≤380 | ≤550 | ≤1000 |
| Capacity (t/h) | 60-80 | 60-160 | 200-550 | 1500-3000 |
| Motor Power (kW) | 135 | 132 | 2×200 | 1250 |
| Dimensions (L×W×H) (mm) | 3514×2230×1515 | 2880×2130×2390 | 3370×2925×2750 | 4890×5010×4560 |
