B05 – Bouncing Rod Screen Panel
- Dynamic Bouncing Rod Structure: Flexible rod elements respond dynamically to screen vibration, helping maintain an active screening surface and reduce material lodging between adjacent screening elements.
- Improved Anti-Clogging Performance: Continuous relative movement of the rods helps release trapped particles, making the panel suitable for difficult-to-screen bulk materials and demanding classification duties.
- Modular Screen Deck Design: Multiple screen sections can be arranged within the supporting frame, allowing different deck areas to be inspected, serviced, or replaced individually.
- Stable Screening & Material Flow: The open rod arrangement supports continuous passage of undersize particles while oversized material moves toward the discharge end of the vibrating screen.
1. Product Overview

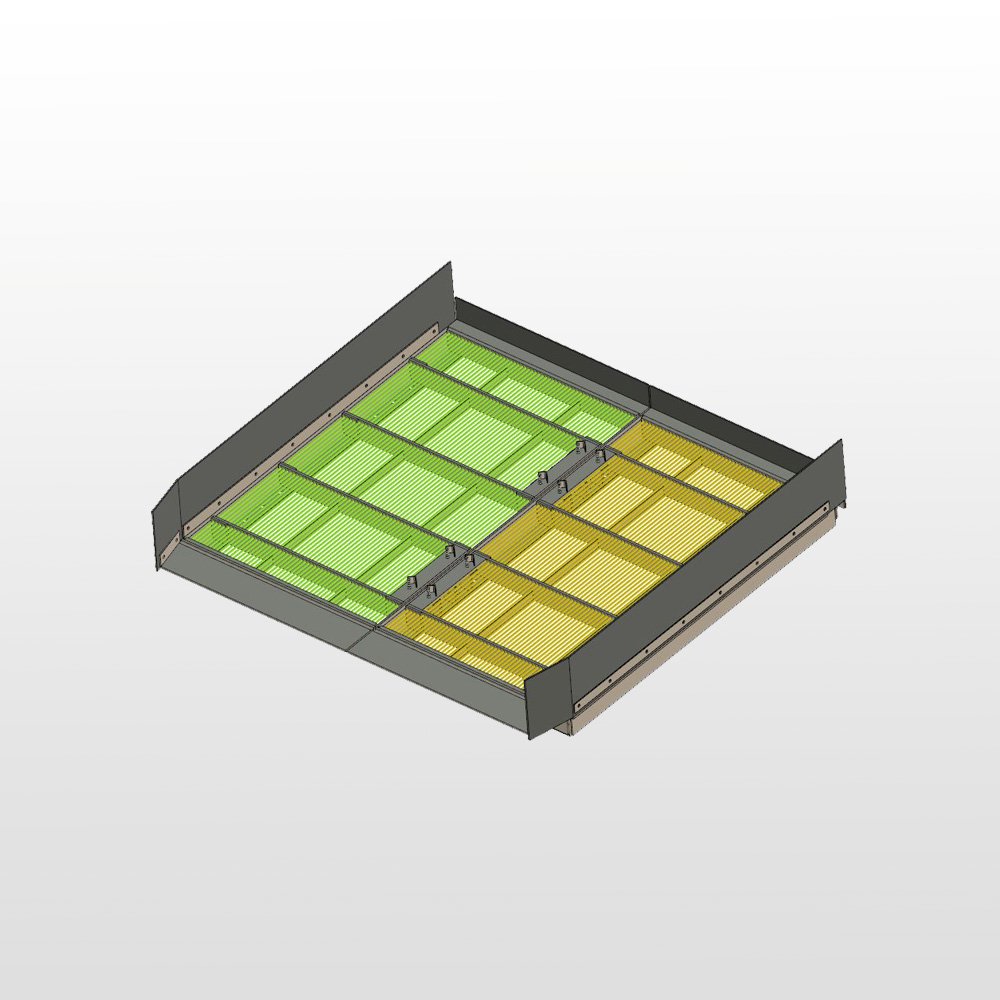

The B05 Bouncing Rod Screen Panel is a specialized screening surface designed for industrial vibrating screens and bulk-material classification equipment. Its working area uses multiple closely arranged rod-type screening elements that move dynamically under vibration, helping reduce particle lodging and maintain effective screening openings. The panel can be installed as part of a modular screen deck, where several sections form the complete screening surface. It is suitable for mineral processing, aggregate production, building materials, and other bulk-material applications requiring classification, scalping, or separation. In a vibrating screen, the B05 panel provides the direct material-contact surface responsible for separating undersize and oversized fractions.
2. Detailed Description
During operation, bulk material is introduced onto the B05 screen deck and transported across the screening surface by the vibration of the machine. Particles smaller than the spacing between adjacent rods pass through the deck, while oversized particles remain on the surface and continue toward the discharge section. Because the rod elements can respond dynamically to vibration and material impact, relative movement is created across the screening surface.
This bouncing action helps dislodge particles that may become trapped between the rods, supporting more stable screening performance in applications where conventional rigid surfaces may experience blockage. The screen sections are supported by cross members and installed within the main deck frame. Multiple panels can be arranged to match the screen width, length, and process layout, providing a practical configuration for industrial classification and material-handling systems.
3. Why Choose Us
- Reduced screen plugging: Dynamic rod movement helps release particles trapped between screening elements and maintain more open screening passages during operation.
- Active self-cleaning action: Bouncing movement generated by the vibrating screen reduces material accumulation on the working surface compared with a completely rigid screening deck.
- Efficient particle separation: Controlled gaps between adjacent rods allow undersize material to pass while larger particles continue across the screen surface.
- Modular screen arrangement: Multiple screen sections can be installed within one deck, simplifying inspection and replacement of individual working areas.
- Suitable for difficult screening duties: The dynamic screening surface is appropriate for applications where irregular particles or material buildup can affect conventional screen openings.
- Stable supporting structure: Cross supports and the surrounding frame maintain the positioning of the screening elements while allowing the required working movement.
- Easy vibrating screen integration: The panel can be incorporated into compatible screening machines used in mineral, aggregate, building-material, and other bulk-processing lines.
| Parameter | Specification |
|---|---|
| Model | B05 |
| Product Type | Bouncing Rod Screen Panel |
| Screen Structure | Rod-Type Dynamic Screening Surface |
| Screening Element | Bouncing Rods |
| Screening Method | Dynamic Rod Separation |
| Self-Cleaning Principle | Relative Rod Movement During Vibration |
| Panel Length (mm) | — |
| Panel Width (mm) | — |
| Panel Height (mm) | — |
| Rod Diameter / Profile (mm) | — |
| Screening Gap (mm) | — |
| Open Area (%) | — |
| Material | — |
| Mounting Type | Modular Frame Mounting |
| Weight (kg) | — |
| Typical Applications | Vibrating screens, classification, scalping and bulk-material separation |
