HC01 – Drive Shaft
- Universal Joint Power Transmission: Transfers rotational power between connected equipment while accommodating angular deviation between driving and driven shafts in industrial machinery.
- Telescopic Shaft Configuration: The sliding shaft section allows limited axial movement and installation-length compensation when equipment spacing or operating position changes.
- Flange-Type Connection: Flanged ends provide a practical mechanical interface for connection to gearboxes, motors, vibration exciters, and other rotating equipment.
- Robust Industrial Structure: Universal joints, tubular shaft sections, and reinforced end connections provide a compact transmission solution for demanding mechanical drive systems.
1. Product Overview
The HC01 Drive Shaft is an industrial mechanical transmission component designed to transfer rotational power between driving and driven equipment. The product shown uses universal joints at both ends, flange connections, and a telescopic shaft section, allowing it to operate where the connected shafts are not perfectly aligned. This type of drive shaft is commonly installed between motors, gearboxes, vibration exciters, transmission units, and other rotating machinery. It can be used in vibrating equipment, material-processing machinery, conveyors, screening systems, and other industrial drive arrangements where torque transmission and installation flexibility are required.
2. Detailed Description
During operation, rotational torque enters through one flange and is transmitted through the universal joint, central shaft section, and opposite joint to the driven equipment. The universal joint arrangement allows the shaft to transmit rotation even when the connected shaft centerlines have a certain angular offset. The telescopic section provides axial movement to accommodate installation variation and limited changes in shaft distance.

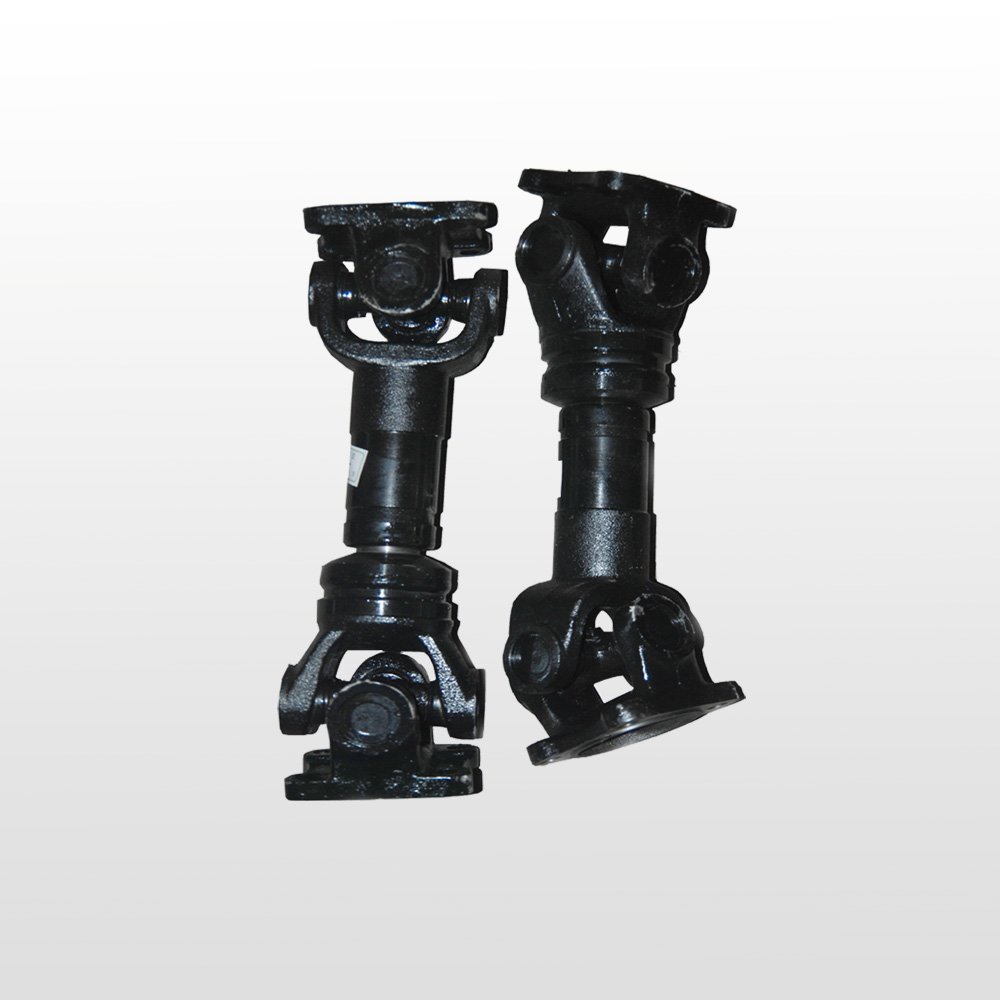

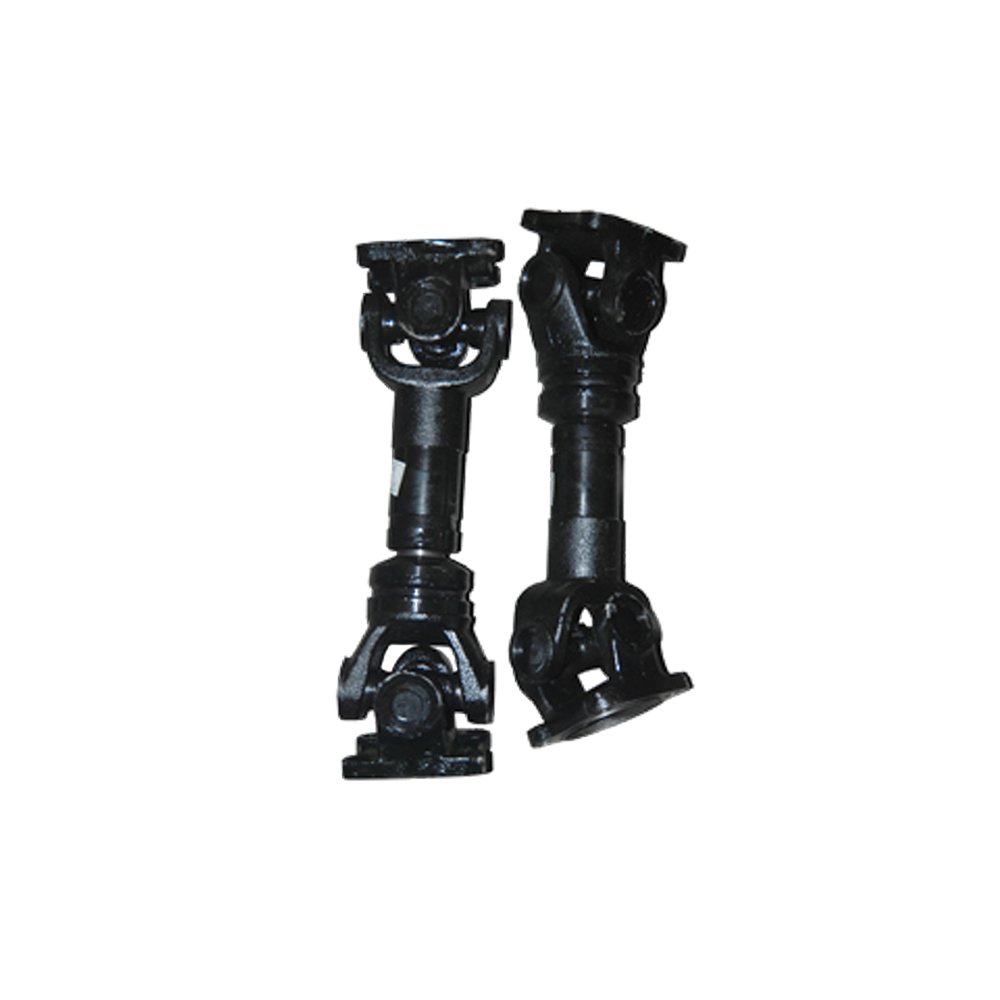

The HC01 uses flange-mounted universal joints combined with a tubular drive shaft structure. Different overall lengths can be configured according to equipment layout, as indicated by the product images showing several shaft sizes. It can be integrated into industrial drive systems where a direct rigid coupling is unsuitable because of angular deviation, structural movement, or installation constraints.
3. Why Choose Us
- Flexible torque transmission: Universal joints allow rotational power to be transmitted between shafts that are not positioned on exactly the same centerline.
- Axial compensation capability: The telescopic shaft section accommodates limited changes in installation length and helps simplify alignment during assembly.
- Flange-mounted connection: End flanges provide a secure mechanical interface for connection with compatible transmission and driven equipment.
- Suitable for different installation layouts: The shaft structure can be configured in different lengths to match specific equipment spacing and drive arrangements.
- Compact transmission solution: Combines angular compensation and power transmission within one shaft assembly, reducing the need for multiple separate coupling components.
- Wide industrial compatibility: Suitable for rotating transmission systems used with vibrating machinery, conveyors, processing equipment, and related industrial machines.
- Replaceable transmission component: The complete shaft assembly can be inspected or replaced independently as part of routine mechanical maintenance.
| Parameter | Specification |
|---|---|
| Model | HC01 |
| Product Type | Drive Shaft |
| Joint Type | Universal Joint |
| Connection Type | Flange Connection |
| Shaft Configuration | Telescopic Universal Drive Shaft |
| Overall Length (mm) | — |
| Flange Diameter (mm) | — |
| Rated Torque (N·m) | — |
| Maximum Speed (r/min) | — |
| Allowable Operating Angle (°) | — |
| Telescopic Travel (mm) | — |
| Material | — |
| Weight (kg) | — |
| Typical Applications | Industrial machinery, vibrating equipment, conveyors and mechanical transmission systems |
