HC06 – Rubber Spring
- Elastic Support & Vibration Isolation: Rubber construction provides resilient equipment support while helping reduce vibration and impact transmission between vibrating machinery and the supporting structure.
- High Damping Characteristics: The elastic rubber body absorbs part of the dynamic energy generated during operation, supporting smoother movement and reduced structural vibration transmission.

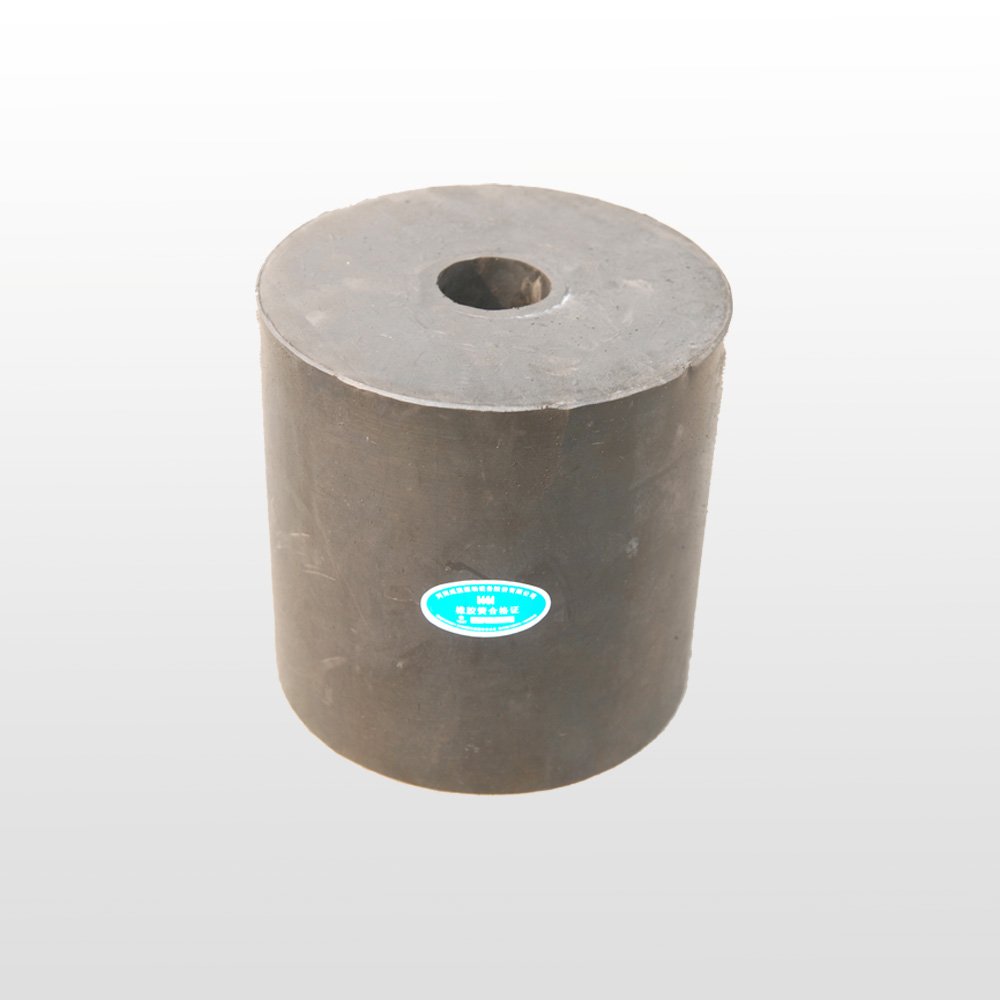

- Compact Cylindrical Design: Solid cylindrical construction with a central mounting hole provides a simple installation arrangement for vibrating screens, feeders, and related industrial equipment.
- Multiple Size Options: Different diameters, heights, and external profiles can be matched to various equipment layouts, support positions, and vibration-isolation requirements.
1. Product Overview
The HC06 Rubber Spring is an elastic support and vibration-isolation component designed for vibrating screens, vibrating feeders, conveyors, and other industrial vibration equipment. It is typically installed between the moving machine body and the supporting frame, where it carries the equipment load while allowing controlled elastic movement. The cylindrical rubber body provides both spring action and inherent damping, helping reduce shock and vibration transmitted to surrounding structures. The supplied images show several dimensional configurations, including smooth cylindrical and ribbed external profiles. HC06 rubber springs are suitable for mineral processing, aggregate handling, building materials, and other bulk-material production systems requiring compact vibration support.
2. Detailed Description
During operation, the HC06 Rubber Spring undergoes repeated compression and recovery as the vibrating machine moves. The elastic deformation of the rubber body provides restoring force while its inherent damping helps dissipate part of the vibration energy. This combination allows the component to function as both an elastic support and a vibration-isolation element within the machine suspension system.
The spring uses a cylindrical structure with a central mounting hole for positioning on compatible equipment supports. Different external diameters, heights, bore sizes, and surface profiles can be selected according to the machine arrangement. Compared with a metal coil spring, the rubber spring provides a compact support form with additional damping behavior, making it suitable for vibration-control applications in screening, feeding, conveying, and other industrial processing equipment.
3. Why Choose Us
- Combined spring and damping function: The rubber body provides elastic support while also absorbing part of the dynamic vibration energy generated during equipment operation.
- Reduced vibration transmission: Helps isolate the vibrating machine from its support frame or foundation and limits the transfer of mechanical vibration.
- Compact support structure: Cylindrical construction requires relatively little installation space and can be positioned directly at designated machine support points.
- Suitable for repeated compression: The elastic body is designed to work through continuous compression and recovery cycles in vibrating equipment.
- Simple installation and replacement: Central mounting holes provide straightforward positioning, while the complete spring can be replaced independently during maintenance.

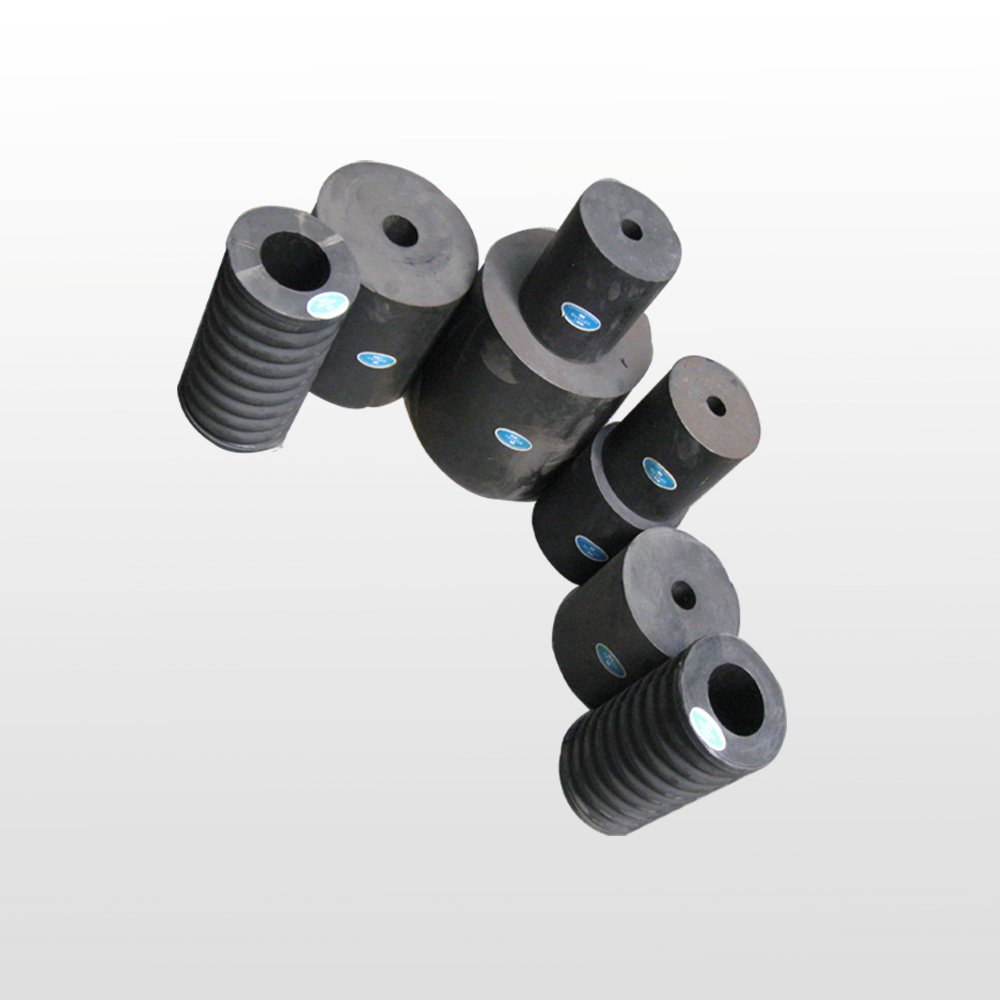

- Multiple structural configurations: Smooth and ribbed cylindrical forms shown in the product range allow selection according to different installation and support requirements.
- Wide equipment compatibility: Suitable for vibrating screens, feeders, conveyors, and other industrial machines requiring elastic support and vibration isolation.
| Parameter | Specification |
|---|---|
| Model | HC06 |
| Product Type | Rubber Spring |
| Material | Rubber |
| Structural Form | Cylindrical Elastic Spring |
| External Profile | Smooth / Ribbed Type |
| Outer Diameter (mm) | — |
| Inner Diameter (mm) | — |
| Overall Height (mm) | — |
| Rated Load (kN) | — |
| Static Stiffness (N/mm) | — |
| Allowable Compression (mm) | — |
| Hardness (Shore A) | — |
| Weight (kg) | — |
| Typical Applications | Vibrating screens, feeders, conveyors and industrial vibration-support systems |
