JZ03 – Pedestal-Type Vibration Exciter
- Stable Directional Excitation: Paired rotating eccentric assemblies generate controlled vibration for screening, feeding, conveying, and other bulk-material processing equipment requiring consistent mechanical excitation.
- Pedestal-Mounted Structure: The integrated pedestal base provides a rigid mounting arrangement, helping transfer vibration effectively to the connected machine while supporting secure industrial installation.
- Robust Mechanical Configuration: Reinforced bearing housings, protective rotating covers, and a rigid support frame are designed for demanding vibrating machinery and continuous production environments.
- Suitable for Equipment Integration: The compact exciter assembly can be incorporated into vibrating screens, feeders, conveyors, and other processing machines as an independent mechanical vibration source.
1. Product Overview
The JZ03 Pedestal-Type Vibration Exciter is a mechanical excitation unit designed to provide vibration for industrial screening, feeding, conveying, and bulk-material processing equipment. Its pedestal-mounted construction provides a rigid connection between the exciter assembly and the vibrating machine, allowing excitation forces to be transferred efficiently to the working structure. The visible paired rotating assemblies are configured for coordinated operation and are protected by circular covers. This type of vibration exciter is commonly used with vibrating screens, vibrating feeders, vibrating conveyors, and related processing equipment in mining, aggregates, building materials, metallurgy, chemical processing, and other industrial production lines.
2. Detailed Description
The JZ03 operates through rotating eccentric assemblies that produce periodic centrifugal forces during operation. The paired rotating components can work in coordinated directions so that the generated forces combine into the vibration required by the connected equipment. Vibration is transmitted through the exciter housings and pedestal support structure to the screen body, feeder trough, conveyor structure, or other vibrating component.

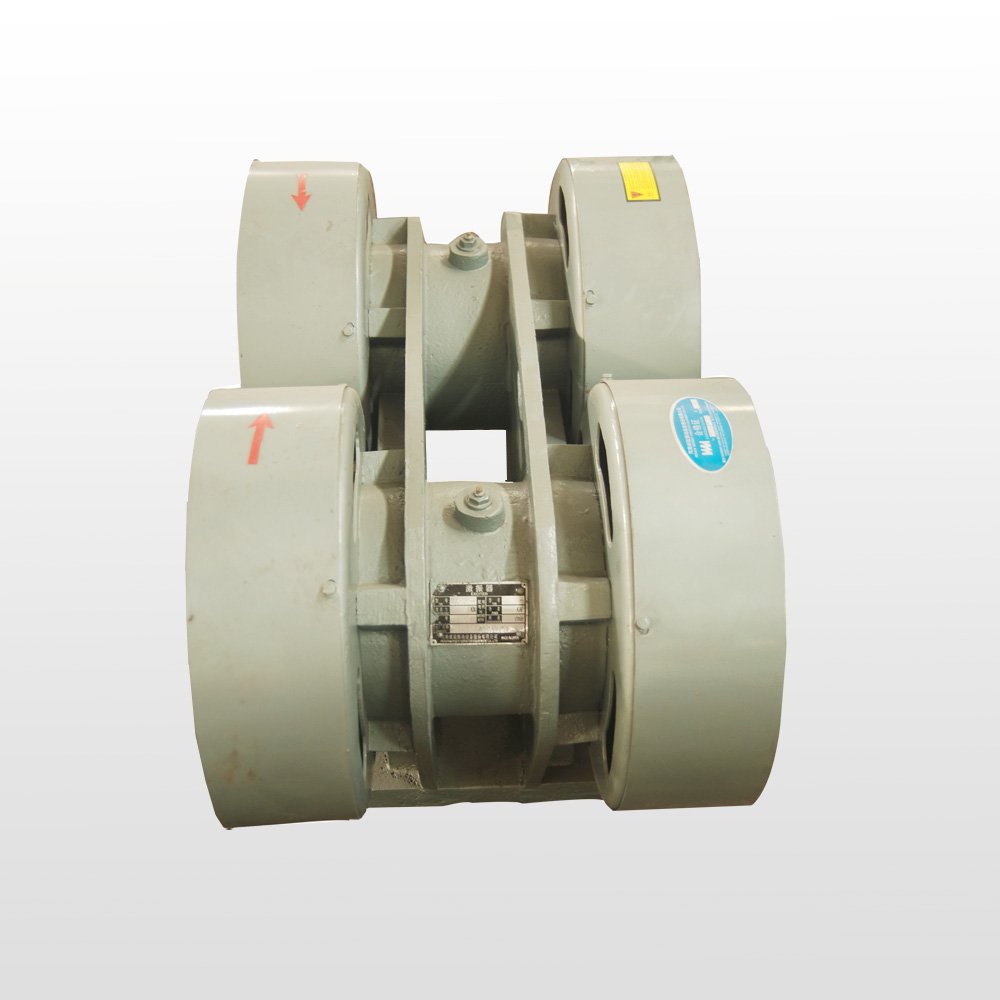

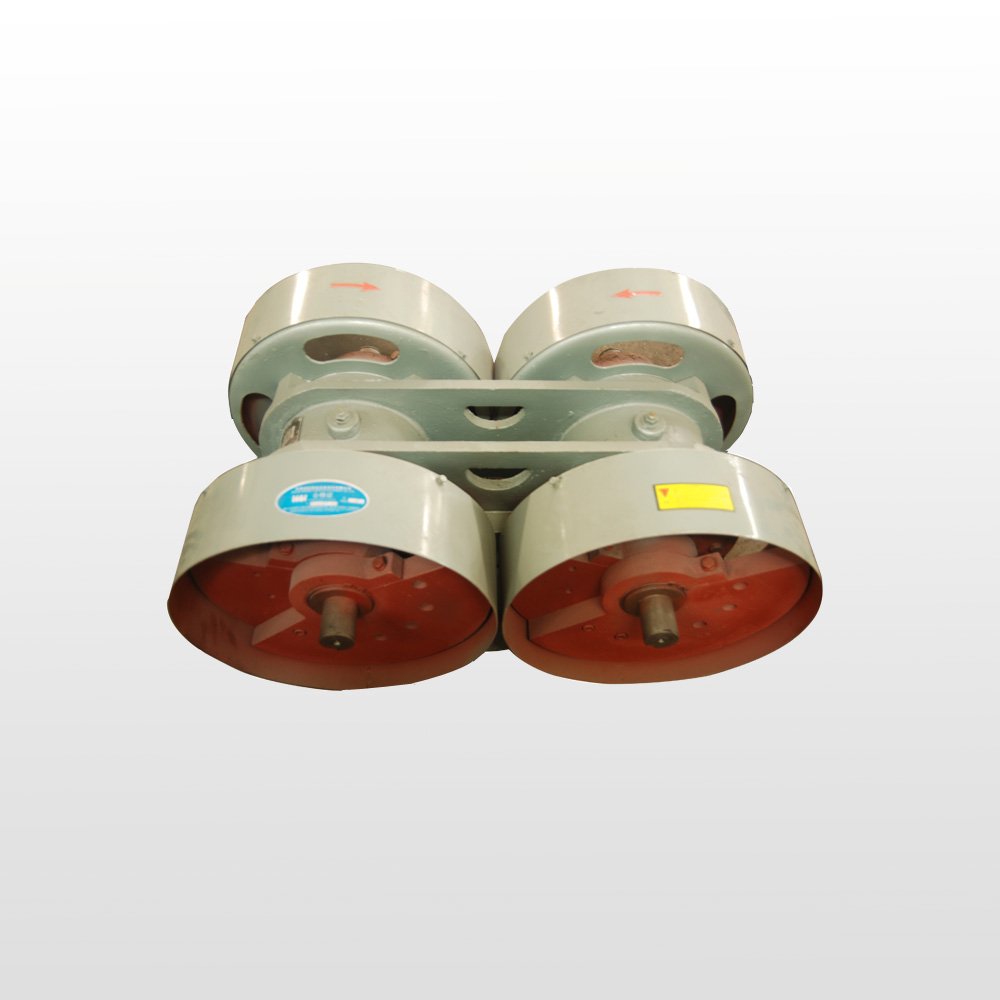

The unit features multiple enclosed rotating sections, rigid bearing housings, exposed drive shaft ends, and an integrated support frame. Protective covers surround the rotating eccentric areas, while the pedestal configuration provides practical mounting to the main equipment structure. Operating speed, excitation intensity, and drive arrangement should be matched to the requirements of the complete machine, allowing the exciter to be integrated into different industrial vibrating systems and automated material-processing lines.
3. Why Choose Us
- Stable coordinated vibration: Paired eccentric rotating assemblies support consistent excitation for industrial screening, feeding, conveying, and material-handling applications.
- Rigid pedestal installation: The integrated support base provides a solid mounting interface for effective vibration transfer to the connected machine structure.
- Protected rotating components: Circular protective covers help isolate the rotating eccentric sections from the surrounding working environment.
- Heavy-duty structural layout: Reinforced housings and support members provide a robust mechanical arrangement suitable for demanding vibrating equipment.
- Flexible drive connection: Accessible shaft ends allow the exciter to be connected with a suitable external drive system according to the complete machine configuration.
- Wide equipment compatibility: Suitable for vibrating screens, feeders, conveyors, and other machinery requiring a separate mechanical excitation source.
- Easy production line integration: The pedestal-mounted design allows the unit to be incorporated into different vibrating equipment layouts and industrial processing systems.
| Parameter | Specification |
|---|---|
| Model | JZ03 |
| Product Type | Vibration Exciter |
| Mounting Type | Pedestal Type |
| Excitation Configuration | Paired Eccentric Rotating Assemblies |
| Rotation Arrangement | Coordinated Paired Rotation |
| Rated Exciting Force (kN) | — |
| Operating Speed (r/min) | — |
| Eccentric Moment (N·m) | — |
| Drive Power (kW) | — |
| Overall Dimensions (L × W × H) (mm) | — |
| Weight (kg) | — |
| Typical Applications | Vibrating screens, feeders, conveyors and related vibrating equipment |
